0036 1 406 98 08
SKU
ARS-WA285/33

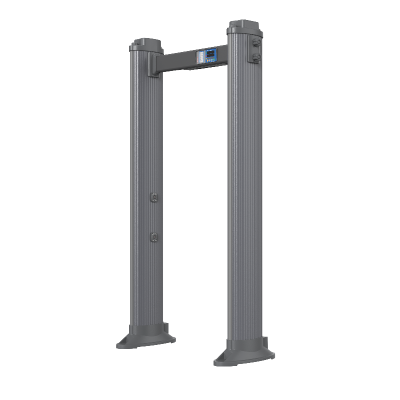

Metal detector gate - weatherproof - 33 zones - network connection - ABS
€2,748.00
Description
Metal detector gates are ideal tools for detecting items that pose a threat to public safety and personal security (such as knives, firearms, blunt force weapons, explosives, etc.). They are suitable for use in airports, correctional facilities, courts, factories, and other high-security environments.
The ARS-WA285/33 is a 33-zone metal detector gate with 2 pairs of infrared passage sensors and 72 preset programs. It has an aesthetic design, robust construction, and is weather-resistant. Thanks to its assembly, it can also be installed outdoors. Two people are needed for transportation and installation. It is an excellent choice for any environment.
More Information
| Voltage (V) | 100 - 230 V |
|---|---|
| Voltage type | AC |
| Product family | metal detector gate |
| Type of sensor | infrared (IR) - passage detection, induction - object detection, detects all metals |
| Number of detection zones | 33 zóna |
| Type of connection | 3-pole circular connector |
| Controlled output type | in case of alarm (NO-COM), in case of passage (NO-COM) |
| Controlled output current rating | 24V DC @ 3 A , 230V AC @ 3 A |
| Monitoring | LED (per zone), alarm and passage counting, sound alert, the location of the detection flashes on the display |
| Programming | digitally from controller, with software |
| Housing material | plastic ABS |
| Dimensions | 1100 x 2308 x 500 mm |
| Passage cross-section | 720 x 2050 mm |
|---|---|
| Other functions | adjustable sensitivity, pre-set settings (72 pcs), adjustable alarm mode, adjustable operating frequency |
| Adjustment of sensitivity levels | 0-99 (general), 0-400 (each zone) |
| Mounting | fixed to the floor |
| Recommended use | in medium-security areas, for implementing controlled access |
| Installation area | indoor, outdoor (slightly rain-protected) |
| Package contents | detector gate/pillar components, screw kit, power cable |
| Environmental temperature | -20°C ~ +65°C |
| Gross weight | 75 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | ARSENAL |
| Product category | D+ |
