Voltage (V) | 100 - 230 V |
---|---|
Voltage type | AC |

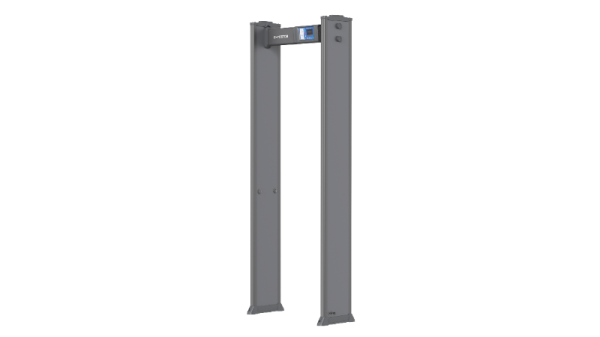

Product family | metal detector gate |
Type of sensor | infrared (IR) - passage detection, induction - object detection, detects all metals |
Number of detection zones | 11 zones |
Type of connection | 3-pole circular connector |
Monitoring | LED (per zone), alarm and passage counting, sound alert, the location of the detection flashes on the display |
Programming | digitally from controller, with software |
Housing material | plastic ABS |
Dimensions | 828 x 2165 x 349 mm |
Passage cross-section | 720 x 2017 mm |
Other functions | adjustable sensitivity, pre-set settings (72 pcs), adjustable alarm mode, adjustable operating frequency |
---|---|
Adjustment of sensitivity levels | 0-99 (general), 0-400 (each zone) |
Mounting | fixed to the floor |
Recommended use | in medium-security areas, for implementing controlled access |
Installation area | indoor, outdoor (slightly rain-protected) |
Package contents | detector gate/pillar components, screw kit, power cable |
Environmental temperature | -20°C ~ +65°C |
Gross weight | 27 kg |
Warranty | 12 months |
Certificates | CE |
Manufacturer | ARSENAL |
Product category | D+ |
