SKU
ARS-SP6

Single panel metal detector - for detecting ferromagnetic metals - 6 zone

Budapesti raktár: Nincs készlet
Add to Compare
€1,873.00
Description

Metal detector gates are ideal tools for detecting items that pose a threat to public safety or physical well-being (knives, firearms, impact-enhancing weapons, explosives, etc.). They are suitable for use in airports, correctional facilities, courts, factories, and other high-security locations.

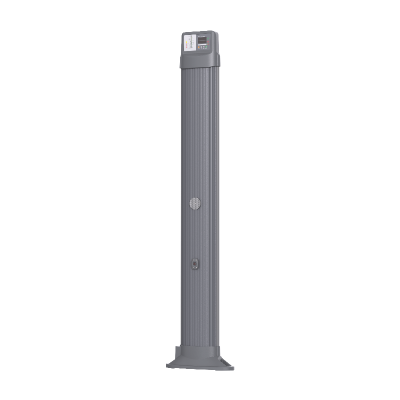

The ARS-SP6 is a 6-zone mono-panel metal detector equipped with 2 infrared sensors and 72 pre-set programs. It features an aesthetic design, is easy to transport and install. It is an excellent choice for narrow passages where two traditional detector gates would not fit, but two passage routes are necessary for faster entry. In such cases, alternating entry can be implemented on the routes.

Downloads
Datasheet (2.18 MB)

More Information

More Information
Voltage (V) 100 - 230 V
Voltage type AC
Product family metal detector pillar
Type of sensor infrared (IR) - passage detection, induction - object detection, detects ferromagnetic materials
Number of detection zones 6 zóna
Type of connection 3-pole circular connector
Monitoring LED (per zone), alarm and passage counting, sound alert, the location of the detection flashes on the display
Programming digitally from controller, with software
Housing material plastic ABS
Dimensions 500 x 2250 x 200 mm
Passage cross-section arbitrary but maximum 1.5 m
Other functions adjustable sensitivity, pre-set settings (72 pcs), adjustable alarm mode, adjustable operating frequency
Adjustment of sensitivity levels 0-99 (general), 0-400 (each zone)
Mounting fixed to the floor
Recommended use in medium-security areas, for implementing controlled access
Installation area indoor, outdoor (slightly rain-protected)
Package contents detector gate/pillar components, screw kit, power cable
Environmental temperature -20°C ~ +65°C
Gross weight 34 kg
Warranty 12 months
Certificates CE
Manufacturer ARSENAL
Product category D+
