YS407
Wireless Transceiver Push Button Set for Automatic Doors
€48.00
Description

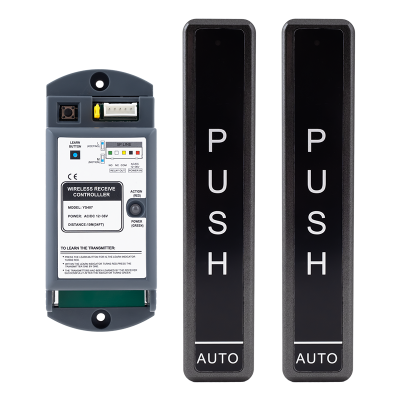

YS407 is a remote-controlled open/close button transmitter-receiver package designed for automatic sliding door operator kits. The receiver unit can be installed either flush-mounted or surface-mounted and features LED feedback. The two transmitters are elongated, adhesive-mounted, proximity-sensing open/close buttons. It is suitable for use with sliding door automatics, electric door openers, and electric locks.
Downloads
More Information
| Voltage (V) | 12 - 36 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 15 mA |
| Maximum current consumtion (A) | 80 mA |
| Max. operating distance | 25 m |
| Operation frequency | 433.92 MHz |
| Number of channels | 1 |
| Memory capacity | 16 remote control |
| Controlled output type | relay (NO/NC) |
| Controlled output current rating | 2A @ 14V DC |
| Controlled output timing type | monostable, bistable |
| Dimensions | 122 x 50 x 33 mm |
| Installation area | indoor |
| Housing material | plastic ABS |
|---|---|
| Environmental temperature | -42°C ~ 45°C |
| Humidity tolerance (non-condensing) | <90% |
| Gross weight | 0,2 |
| Package contents | 1 pc RF receiver, 2 pcs remote control with battery |
| Warranty | 12 months |
| Certificates | CE |
| Number of buttons on remote control | 1 |
| Remote control layout | Fixed installation |
| Remote control functions | Controls |
| Type of remote control battery | 2 x CR2430 |
| Modulation | ASK |
| Remote control dimensions | 201 x 40 x 12,8 mm |
| Product category | D |
