Built-in battery for SW200SLIM door opener

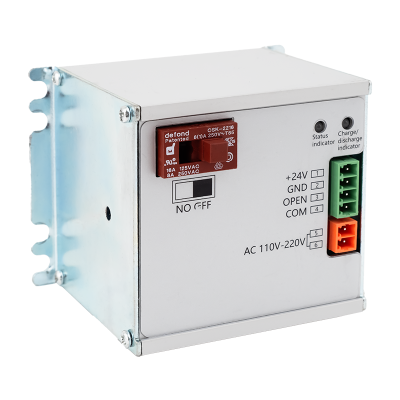

The SW200SLIM/LIB is a backup battery designed to provide uninterrupted power to the SW200SLIM automatic door operator.

The input and output connectors on the battery can be directly connected to the SW200SLIM door operator, as they are pre-configured at the factory. Secure the power supply in the dedicated location on the door operator’s mainboard using crosshead screws, and connect the two connectors.

When the device switch is in the ON position, the door operator will automatically open the door in the event of a power outage. (It sends an opening signal to the door operator via the OPEN-COM output and supplies power through the UPS+ and UPS- outputs.)

WARNING! The battery is recommended exclusively for backup use with the SW200SLIM door operator.
