SKU
YS104-B-UNI

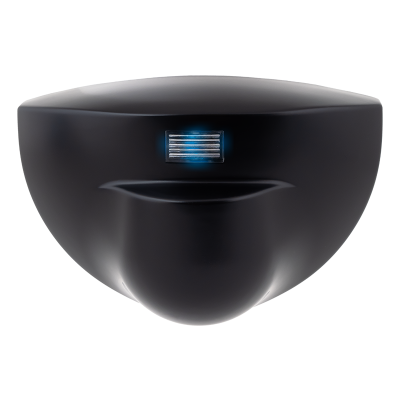

Unidirectional microwave motion sensor
€43.80
Description
YS104-B-UNI is a unidirectional microwave sensor designed for motion detection, suitable for sliding doors and swing door automations. It features adjustable tilt angle and detection distance, and is intended for indoor use. This sensor is a perfect replacement for the now-discontinued VZ-MS01 or VZ-MS04 sensors.
The sensor is unidirectional, meaning it only detects objects moving towards the sensor and does not respond to those moving away from it.
Downloads
More Information
| Voltage (V) | 12 - 24 V |
|---|---|
| Voltage type | AC/DC |
| Power supply requirement | permanent |
| Maximum current consumtion (A) | 105 mA |
| Consumption (W) | >2 W |
| Type of sensor | microwawe (MW), motion detection |
| Operation frequency | 24,125 GHz |
| Type of connection | screw connection |
| Operating modes | in case of detection, it gives a signal on the controlled output |
| Controlled output type | 1 relay (IR: NO-COM) |
| Controlled output timing | 1 s |
| Installation height | max. 5 m (recommended: 3,2 m) |
| Maximum MW detection area | ~ 15m2 (5 x 3 m) |
| Housing material | plastic ABS |
|---|---|
| Dimensions | 120 x 80 x 50 mm |
| Other functions | horizontal and vertical adjustment option, one-way detection, LED indication |
| Mounting | above the door |
| Recommended use | for the setup of an automatic opening, for automatic door system, and sliding door systems |
| Installation area | indoor |
| Package contents | sensor unit, screw set |
| IP rating | IP54 |
| Environmental temperature | -20°C ~ +55°C |
| Gross weight | 0,244 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | D |
