Automatic door operator - on the door frame - universally installable

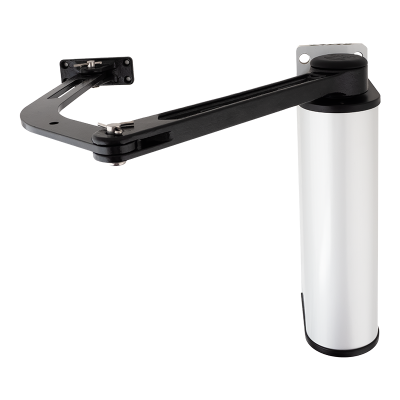

The H3-PRO is a door operator designed for installation on the door frame. The set includes the door operator, arm, power supply, mounting screws and brackets (for both wood and concrete installation), a drilling template, and two remote controls.

Thanks to its durable construction and powerful, brushless, quiet motor, the H3-PRO is an excellent solution for automatic door operation. It is ideal for narrow but heavy doors (up to 234 kg / 800 mm) or wider but lighter doors (up to 50 kg / 1800 mm).

Features:
- Equipped with automatic end-position learning, adjustable in the programming menu.
- Adjustable opening and closing speed, opening and re-closing delay, and obstacle (collision) detection.

Connection points:
- The anti-crush protection mode can also be customized in various ways via the programming menu.
- Includes a NO-COM dry contact input, to which a push button, keypad, or RFID reader can be connected.
- Features an electric lock control output, adjustable for NO or NC locks, as well as an anti-crush protection input.
• In NC mode, the lock control output continuously provides 12 V DC, and the voltage is cut off during the opening cycle.
• In NO mode, the device supplies voltage to the lock control output either at the beginning of opening (0–30°) or near the end of the closing cycle (90–30°).

In the event of a power failure, the device remains in its current position (open or closed) but can still be opened manually.

WARNING! For NO (voltage-triggered) locks, uninterrupted power supply for the passage cross-section is required. In this case, the device's power supply should be replaced with a similar performance power supply with a battery input (e.g., DR24060-02B or DR24120-02B).
