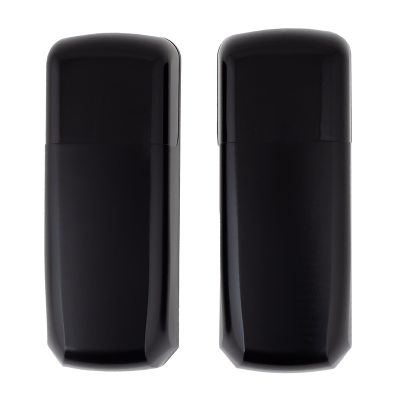

YS122-Y Active infrared photocell pair consisting of a battery powered transmitter and a wired receiver unit.
Thanks to its battery-powered transmitter unit, it is possible to install a pair of active photocells by wiring only one side.
The photocell prevents the gate or barrier from closing while anything or anyone is in the path of the photocell, reducing the risk of damage or injury.
The product has an IP54 protection rating and its operation is unaffected by ambient light.
Voltage (V) | 12 / 24 V |
---|---|
Voltage type | AC/DC |
Power supply requirement | permanent (on RX side), battery (on TX side) |
Maximum current consumtion (A) | ~ 45 mA |
Consumption (W) | >2 W |
Type of sensor | infrared (IR), presence detection |
Type of connection | screw connection |
Operating modes | in case of detection, it gives a signal on the controlled output |
Controlled output type | 1 relay (IR: NC-COM) |
Controlled output current rating | 30V DC @ 1A |
Installation height | 0,2 - 0,6 m (recommended) |
Maximum IR detection distance | 0,5 - 10 m |
Housing material | plastic ABS |
Dimensions | 128 x 50 x 32 mm (x2) |
---|---|
Mounting | surface mounted |
Recommended use | for vehicle access control, for the implementation of anti-collision protection |
Installation area | outdoor |
Package contents | screw set, 1 pair of transmitter and receiver |
Compatible products | BXB-POL-YS12X-50 |
IP rating | IP54 |
Environmental temperature | -20°C ~ +60°C |
Humidity tolerance (non-condensing) | <80% |
Gross weight | 0,181 kg |
Warranty | 12 months |
Certificates | CE |
Product category | B |
