0036 1 406 98 08
SKU
BXB-S18CB02I-gy-3F4-R

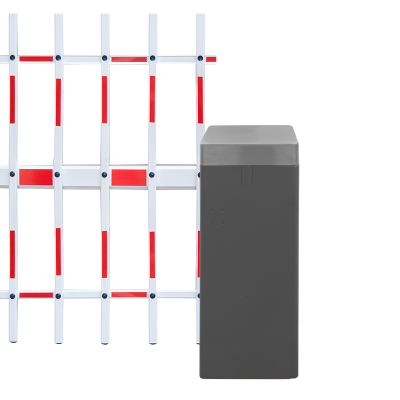

Barrier S18 - grey - double-fence arm - 4 m - right
€1,350.00
Description
|
The S18 SERVO PRO 100 type 300W barrier is designed for industrial traffic areas. The precision servomotor and spring balancing guarantee 10 million opening/closing cycles (MCBF), thus completing 5760 cycles per day without any issues. The control unit with an LCD display assists in the simple and quick setup of the gate. The modern exterior casing is aesthetically pleasing and provides protection against weather conditions. The internal mechanism can be highlighted, allowing it to be easily converted from right-handed to left-handed or vice versa. The S18 is a modern, easily installable, precisely adjustable automatic barrier. The device operates with a servomotor, which allows for precise positioning of the arm, as well as adjustment of the open time and opening speed.
|
Downloads
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Motor type | DC servo (brushless) |
| Motor power (W) | 300 W |
| Motor torque | 480 Nm |
| Opening direction (DIN 107) | reversible (right< >left) |
| Body design | powder coated, grey body, grey cap |
| Dimension of body | 360 x 1000 x 285 mm |
| Arm size and type | 4 m double-fence (right) |
| Fence height | 1400 mm (installed: 170-1570 mm) |
| Arm cross section | 45 x 100 mm |
| Height with open arms | ~ 4,9 m |
| Product family | S18 (SERVO PRO 100) |
| Opening and closing time | 3-9 s (adjustable) |
| Automatic closeure | adjustable |
| Reclosure delay | 0 sec / 3-60 s |
| Programming | digitally from controller |
| Opening possibilities | controlled electrical signal, (NO - dry contact), remote control, manual opening (in state of power off) |
| Communication | RS-485 |
| Passing speed | 240 open/hour (100% working cycle) |
|---|---|
| End position setting | from control electronics (horizontally and vertically) |
| Built-in LED | no |
| ATTENTION! | The remote control transmitter-receiver found in the device is recommended for maintenance purposes only. |
| Package contents | barrier, counterbalancing springs, barrier arm, remote control |
| Counterbalancing springs | BXB-SPRE2-45038-5.8-bl (2 pcs) |
| Compatible products | protective rubber, LED strip, barrier arm support (fix), operation light, traffic light, induction loop, photocell, remote control module, BXC-SPIDER - RS485 communicator |
| Required accessories for a mobile arm support / protection rubber | The factory spring is sufficient for installing the edge protection rubber and LED. |
| Recommended use | industrial usage |
| Installation area | outdoor |
| Life time | MCBF: 10 million opening cycles |
| IP rating | IP54 |
| Environmental temperature | -35°C ~ +80°C |
| Humidity tolerance (non-condensing) | >90% |
| Gross weight | 62 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | BOOMX |
| Product category | B+ |
