SKU
BXB-S18CB02I-or-A3(90)

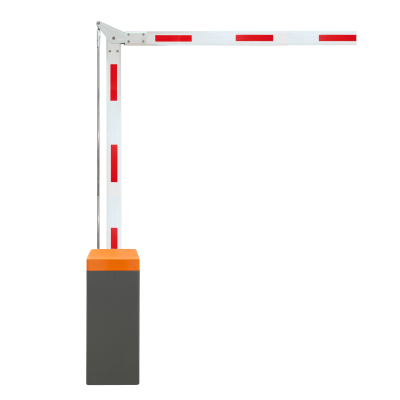

Barrier S18 - orange - 90° articulated - 3 m - reversible
€1,300.00
Description
|
The S18 SERVO PRO 100 type 300W barrier is designed for industrial traffic areas. The precision servomotor and spring balancing guarantee 10 million opening/closing cycles (MCBF), thus completing 5760 cycles per day without any issues. The control unit with an LCD display assists in the simple and quick setup of the gate. The modern exterior casing is aesthetically pleasing and provides protection against weather conditions. The internal mechanism can be highlighted, allowing it to be easily converted from right-handed to left-handed or vice versa. The S18 is a modern, easily installable, precisely adjustable automatic barrier. The device operates with a servomotor, which allows for precise positioning of the arm, as well as adjustment of the open time and opening speed.
|
Downloads
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Motor type | DC servo (brushless) |
| Motor power (W) | 300 W |
| Motor torque | 480 Nm |
| Opening direction (DIN 107) | reversible (right< >left) |
| Body design | powder coated, grey body, orange cap |
| Dimension of body | 360 x 1000 x 285 mm |
| Arm size and type | 3 m 90° articulated |
| Arm cross section | 45 x 100 mm |
| Height with open arms | 2,4 m |
| Product family | S18 (SERVO PRO 100) |
| Opening and closing time | 3-9 s (adjustable) |
| Automatic closeure | adjustable |
| Reclosure delay | 0 sec / 3-60 s |
| Programming | digitally from controller |
| Opening possibilities | controlled electrical signal, (NO - dry contact), remote control, manual opening (in state of power off) |
| Communication | RS-485 |
| Passing speed | 240 open/hour (100% working cycle) |
|---|---|
| End position setting | from control electronics (right and left limit position) |
| Built-in LED | no |
| ATTENTION! | The remote control transmitter-receiver found in the device is recommended for maintenance purposes only. |
| Package contents | barrier, counterbalancing springs, barrier arm, remote control, arm support bracket |
| Counterbalancing springs | BXB-SPRE2-45038-5.2-rd |
| Compatible products | protective rubber, LED strip, operation light, traffic light, induction loop, photocell, remote control module, BXC-SPIDER - RS485 communicator |
| Required accessories for a mobile arm support / protection rubber | For separate installation of the arm support and for combined installation with LED, the factory springs must be replaced with 5.8 blue springs. For separate installation of the edge guard rubber and LED, the factory springs are sufficient. |
| Recommended use | industrial usage |
| Installation area | outdoor |
| Life time | MCBF: 10 million opening cycles |
| IP rating | IP54 |
| Environmental temperature | -35°C ~ +80°C |
| Humidity tolerance (non-condensing) | >90% |
| Gross weight | 56 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | BOOMX |
| Product category | B+ |
