0036 1 406 98 08
SKU
YS120-Y
Active infrared photocell pair
€24.80
Description

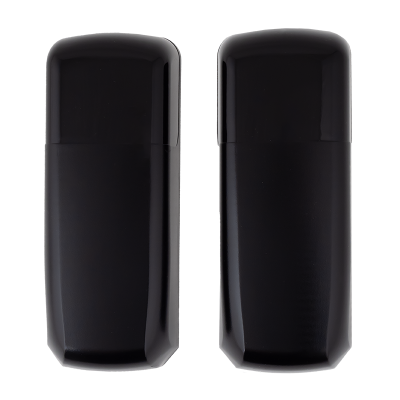

YS120-Y Active infrared photocell pair with one transmitter and one receiver unit.
The photocell prevents the gate or barrier from closing while anything or anyone is in the path of the photocell, reducing the risk of damage or injury.
The product has an IP54 protection rating and its operation is unaffected by ambient light.
Downloads
More Information
| Voltage (V) | 12 - 24 V |
|---|---|
| Voltage type | AC/DC |
| Power supply requirement | permanent (on both side) |
| Maximum current consumtion (A) | ~ 45 mA |
| Consumption (W) | >2 W |
| Type of sensor | infrared (IR), presence detection |
| Type of connection | screw connection |
| Operating modes | in case of detection, it gives a signal on the controlled output |
| Controlled output type | 1 relay (NO-NC-COM) |
| Controlled output current rating | 30V DC @ 1A |
| Controlled output timing | 1 s |
| Installation height | 0,2 - 0,6 m (recommended) |
| Maximum IR detection distance | 0,5 - 20 m |
| Housing material | plastic ABS |
|---|---|
| Dimensions | 128 x 50 x 32 mm (x2) |
| Mounting | surface mounted |
| Recommended use | for vehicle access control, for the implementation of anti-collision protection |
| Installation area | outdoor |
| Package contents | screw set, 1 pair of transmitter and receiver |
| Compatible products | BXB-POL-YS12X-50 |
| IP rating | IP54 |
| Environmental temperature | -20°C ~ +60°C |
| Humidity tolerance (non-condensing) | <80% |
| Gross weight | 0,9kg |
| Warranty | 12 months |
| Product category | B |
