0036 1 406 98 08
SKU
AJ-092-A2L
Bluetooth transceiver set
€25.80
Description

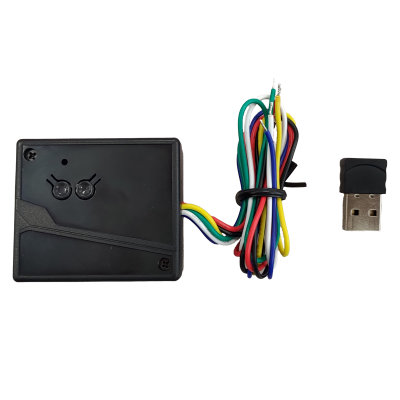

AJ-092-A2L is a Bluetooth transceiver set. The transmitter is a USB plug-in stick, transmits a signal continuously under power and when it reaches the range of the receiver (~10m) the relay in the receiver automatically pulls in.
Downloads
More Information
| Voltage (V) | 12 / 24 V |
|---|---|
| Voltage type | AC/DC |
| Power supply requirement | permanent |
| Stand-by current consumption (A) | 20 mA @ 12V DC |
| Maximum current consumtion (A) | <40 mA @ 12V DC |
| Max. operating distance | 15 m in open space |
| Number of channels | 2 |
| Memory capacity | 340 transmitters |
| Controlled output type | 2 relay (NO-COM) |
| Controlled output current rating | 20 A @ 12V DC |
| Antenna type | Panel antenna |
| Tamper protection | none |
|---|---|
| Dimensions | Receiver: 43 x 57 x 24 mm, Transmitter: 15 x 25 x 5 mm |
| Installation area | indoor |
| Housing material | plastic ABS |
| Environmental temperature | -40°C ~ +65°C |
| Humidity tolerance (non-condensing) | max. 90% |
| IP rating | unclassified |
| Gross weight | 55 gr |
| Package contents | 1 pair of transmitter and receiver |
| Warranty | 12 months |
| Certificates | CE |
| Product category | F |
