0036 1 406 98 08
SKU
BXB-POL-YS12X-50
Photocell holder column YS12X photocells - 50 cm
€24.50
Description

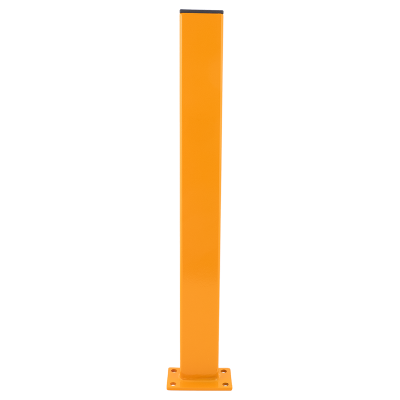

The BXB-POL-YS12X-50 is a photoelectric cell mounting post for YS120-Y and YS122-Y photoelectric sensor pairs. The device features an aesthetic appearance with a highly visible orange powder-coated finish. The package includes 1 mounting post; if you wish to mount both units of the photoelectric cell pair on posts, you will need to purchase 2 posts.
The photoelectric sensor mounted on the post is positioned 50 cm above the base. The post does not include the photoelectric cell pair.
Set includes:
• Photoelectric cell mounting post
• Rubber pad for securing the photoelectric cell
• Mounting screws
More Information
| Mounting | surface mounted |
|---|---|
| Surface | powder coated |
| Material | steel |
| Bracket's type | supporting pillar |
| Bracket's function | installation of a photocell pair |
| Recommended use | for the implementation of anti-collision protection |
| Dimensions | pillar: 560 × 60 × 20 mm base: 100 × 60 × 5 mm |
|---|---|
| Compatible products | YS120-Y, YS122-Y |
| Number of fixing points | 4 pcs |
| Gross weight | 1,45 kg |
| Warranty | 12 months |
| Product category | B |
