0036 1 406 98 08
SKU
YS123-R

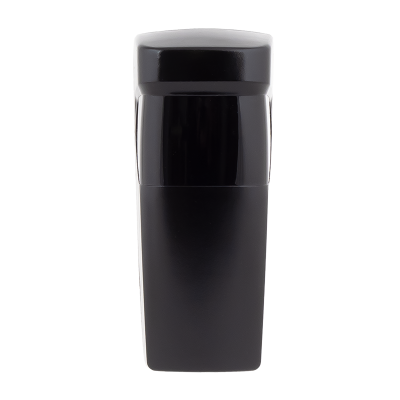

Infrared reflective photocell
€35.30
Description
YS123-R Infrared reflective photocell, designed to enable wiring only on one side.
The photocell prevents the gate or barrier from closing while anything or anyone is in the path of the photocell, reducing the risk of damage or injury.
The product has an IP54 protection rating and its operation is unaffected by ambient light.
Downloads
More Information
| Voltage (V) | 12 - 24 V |
|---|---|
| Voltage type | AC/DC |
| Power supply requirement | permanent |
| Maximum current consumtion (A) | 30 mA |
| Type of sensor | infrared (IR), reflexive |
| Type of connection | screw connection |
| Operating modes | in case of detection, it gives a signal on the controlled output |
| Controlled output type | relay (NO/NC) |
| Controlled output current rating | 30V DC @ 1A |
| Installation height | 0,2 - 0,6 m (recommended) |
| Maximum IR detection distance | 0,5 - 8 m |
| Housing material | plastic ABS |
|---|---|
| Dimensions | 100 x 40 x 35 mm |
| Mounting | surface mounted |
| Recommended use | for vehicle access control, for the implementation of anti-collision protection |
| Installation area | outdoor |
| IP rating | IP54 |
| Environmental temperature | -20°C ~ +60°C |
| Humidity tolerance (non-condensing) | <80% |
| Gross weight | 0,122 kg |
| Warranty | 12 months |
| Product category | B |
