PF50R-AR

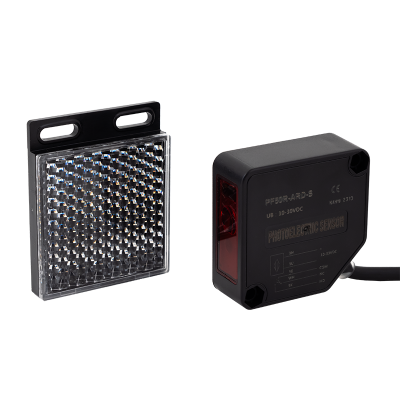

Laser reflective photocell
€37.30
Description
PF50R-AR Laser reflective photocell, designed to enable wiring only on one side.
The photocell prevents the gate or barrier from closing while anything or anyone is in the path of the photocell, reducing the risk of damage or injury.
The product has an IP67 protection rating and its operation is unaffected by external light.
Downloads
More Information
| Voltage (V) | 12 - 24 V |
|---|---|
| Voltage type | DC |
| Power supply requirement | permanent |
| Maximum current consumtion (A) | 60 mA |
| Type of sensor | laser, reflexive |
| Type of connection | screw connection |
| Operating modes | in case of detection, it gives a signal on the controlled output |
| Controlled output type | 1 relay (NO-NC-COM) |
| Controlled output current rating | 30V DC @ 3A, 250V AC @ 3A |
| Installation height | 0,2 - 0,6 m (recommended) |
| Maximum sensing distance | 0,5 - 5 m |
| Housing material | plastic ABS |
|---|---|
| Dimensions | 50 x 50 x 20 mm |
| Mounting | surface mounted |
| Recommended use | for vehicle access control, for the implementation of anti-collision protection |
| Installation area | outdoor |
| IP rating | IP67 |
| Environmental temperature | -25°C ~ +50°C |
| Humidity tolerance (non-condensing) | <80% |
| Gross weight | 0,221 kg |
| Warranty | 12 months |
| Product category | A |
