BXB-S20CB01I-or-S3

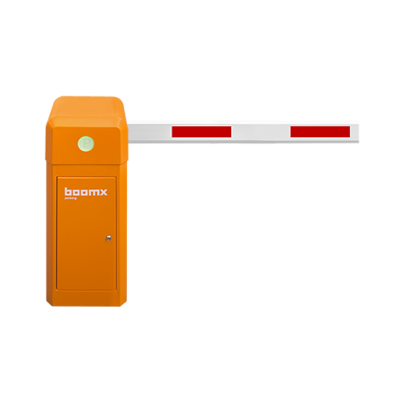

Barrier S20 - orange - straight arm - 3 m - reversible
€938.00
Description
|
The S20 SERVO 100 type 150W power barriers with low consumption are designed for medium-traffic areas, with the precision servomotor and spring balancing guaranteeing 6 million opening/closing cycles (MCBF), thus completing 3600 cycles per day without any issues. The control unit with an LCD display helps in the simple and quick setup of the gate. The modern exterior casing is aesthetically pleasing and provides protection against weather conditions. The internal mechanism can be highlighted, allowing it to be easily converted from right-handed to left-handed or vice versa. The S20 is a modern, easily installable, precisely adjustable automatic barrier. The device operates with a servomotor, which allows for precise positioning of the arm, as well as adjustment of the open time and opening speed.
|
Downloads
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Motor type | DC servo (brushless) |
| Motor power (W) | 150 W |
| Motor torque | 240 Nm |
| Opening direction (DIN 107) | reversible (right< >left) |
| Body design | powder coated, e10grey body, orange door |
| Dimension of body | 330 x 930 x 290 mm |
| Arm size and type | 3 m straight |
| Arm cross section | 45 x 100 mm |
| Height with open arms | ~ 3,9 m |
| Product family | S20 (SERVO 100) |
| Opening and closing time | 3-5 s (adjustable) |
| Automatic closeure | adjustable |
| Reclosure delay | 0 sec / 3-60 s |
| Programming | digitally from controller |
| Opening possibilities | controlled electrical signal, (NO - dry contact), remote control, manual opening (in state of power off) |
| Communication | RS-485 |
| Passing speed | 190 open/hour (80% working cycle) |
|---|---|
| End position setting | from control electronics (horizontally and vertically) |
| Built-in LED | small LED on the cap |
| ATTENTION! | The remote control transmitter-receiver found in the device is recommended for maintenance purposes only. |
| Package contents | barrier, counterbalancing springs, barrier arm, remote control |
| Counterbalancing springs | BXB-SPRE2-45038-5.2-rd |
| Compatible products | protective rubber, LED strip, barrier arm support (mobile/fix), operation light, traffic light, induction loop, photocell, remote control module, BXC-SPIDER - RS485 communicator |
| Required accessories for a mobile arm support / protection rubber | For the installation of the arm support, the 5.2 red spring must be supplemented with a 4.2 black spring. For installing the edge protection rubber and LED, the factory spring is sufficient. Additional springs must be purchased separately. |
| Recommended use | high use |
| Installation area | outdoor |
| Life time | MCBF: 6 million opening cycles |
| IP rating | IP54 |
| Environmental temperature | -35°C ~ +80°C |
| Humidity tolerance (non-condensing) | >90% |
| Gross weight | 55 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | BOOMX |
| Product category | B |
