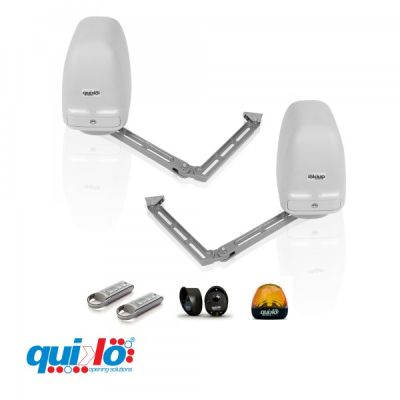

Double swing gate kit with articulated arm - SCARABEO

The QK-SCA24KITWB swing gate operator set is part of QUIKO's SCARABEO family, designed for residential use. The gate operator motor operates on 24V DC and is suitable for moving wings up to 2.5 meters long or weighing a maximum of 300 kg.*
The design of the SCARABEO gate operator arms allows the system to be installed on gates with thick columns. The distance between the center of the hinge and the motor base can be up to 300 mm. The control unit is integrated inside one of the gate operator. LED lights built into the arms provide an attractive appearance for the gate and serve as a warning when the gate is in motion. The included mechanical stops allow the installer to easily and quickly set the movement range of the gate wings. The motors automatically lock the doors in the closed position** but can be opened manually in an emergency.

Thanks to the high-quality materials used, the SCARABEO swing gate operator product line requires minimal maintenance and offers high resistance and durability.

*= The parameters listed are maximum limits and should be interpreted separately. Detailed specifications can be found in the properties section and on the datasheet.
**= For wings longer than 1.8 meters, installing an electric lock is recommended.
