SKU
QK-E2500TKIT
Sliding and swing gate operator automation - 400V AC - 90% working cycle
€1,180.00
Description
The QK-E2500TKIT sliding and cantilever gate motor kit is part of QUIKO’s ERCOLE product line, designed for industrial use. The gate motor operates on 400V AC and is suitable for moving gates weighing up to 2500 kg.
Thanks to its robust construction and fully oil-immersed gears, the ERCOLE series is ideal for industrial applications. Due to the use of high-quality components, the motors are quiet, reliable. They automatically lock the gates when closed and can be manually opened in case of emergency.
ATTENTION! The set includes only the motor drive, the controller, one pair of photocells, and two remote controls. The rack bars must be purchased separately depending on the size of the gate. Compatible rack types: QK-CRF3012 (narrow metal rack – M4).
More Information
| Voltage (V) | 400 V |
|---|---|
| Voltage type | AC |
| Maximum current consumtion (A) | 2,4 A |
| Motor type | AC (asynchronous) |
| Motor power (W) | 650 W |
| Control board | QK-CE220CN |
| Capacitance of the capacitor | 25 µF |
| Maximum gate width | any up to the maximum weight limit |
| Maximal gate weight | 2500 kg |
| Working cycle | 90% (for high usage) |
| Controlled output type | voltage output (auxiliary power, lamp) |
| Controlled output current rating | aux. power supply - 6W (24V DC @ 250mA), lamp - 20W (24V DC @ 834mA) |
| Obstacle detection inputs | opening (internal) photocell (adjustable - NO/NC) , closing (external) photocell (adjustable - NO/NC) |
| Opening speed | 12 m/min |
| Reclosure delay | 0-99 s |
| Programming | manually from controller |
| Opening possibilities | controlled electrical signal, (NO - dry contact), (NO - dry contact, <1s), remote control |
|---|---|
| Behaviour (in case of power off) | fail-secure, can be mechanically opened with a key |
| Operating modes | full opening, pedestrian gate |
| Other properties | - overheat protection (130°C) - fully oil bath gearmotor, - semi-automatic movement path learning - adjustable speed, motor strength (in opening and closing phase) - adjustable operating mode (full opening, pedestrian gate) - automatic close - condominium mode |
| Dimension of body | 210 x 335 x 290 mm |
| Product family | ERCOLE - sliding gate, high performance |
| Installation area | outdoor |
| Mounting | surface mounted |
| Recommended use | for sliding gates, industrial usage |

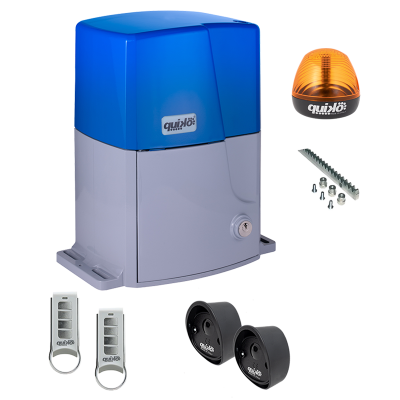

| Package contents | 1 gate operator, 1 mounting metal plate for the operator, 1 control board, 1 light, 1 pair of NC IR photocells, 2 mechanical limit stops, 2 remote controls, 2 emergency release keys, 2 mechanical end limiters |
| Compatible products | QK-LUX24LED (lamp), QK-BRALUX ("L" mounting bracket for the lamp), QK-M04 (remote control), QK-FTPO (photocell), QK-CRF3012 (narrow metal rack) |
| IP rating | IP55 |
| Environmental temperature | -30°C ~ +70°C |
| Warranty | 48 months* |
| Certificates | CE |
| Manufacturer | QUIKO |
| Product category | F |
