SKU
QK-M1000BKIT+
Sliding and swing gate operator automation - 24V AC - 100% working cycle
€520.00
Description
The QK-M1000BKIT+ sliding and cantilever gate motor kit is part of QUIKO’s MOOVY product line, designed for more powerful residential and industrial use. The gate motor operates on 24V DC and is suitable for moving gates weighing up to 800 kg.
Despite their compact size, MOOVY gate motors provide a relatively high amount of force. They feature a die-cast and powder-coated housing along with an extremely durable steel and bronze mechanism, making them quiet, reliable. The motors automatically lock the gates when closed and can be manually opened in case of emergency.
Thanks to the high-quality materials used, the MOOVY sliding and cantilever gate operator range requires minimal maintenance and offers high resistance and durability.
More Information
| Voltage (V) | 24 V |
|---|---|
| Voltage type | DC |
| Maximum current consumtion (A) | 11 A |
| Motor type | DC stepper motor |
| Motor power (W) | 280 W |
| Control board | QK-CE24A |
| Maximum gate width | any up to the maximum weight limit |
| Maximal gate weight | 1000 kg |
| Controlled output type | voltage output (auxiliary power, lamp) |
| Controlled output current rating | aux. power supply - 3W (12V DC @ 250 mA), lamp - 24W (24V DC @ 1 A) |
| Obstacle detection inputs | opening (internal) photocell (adjustable - NO/NC) , closing (external) photocell (adjustable - NO/NC) |
| Opening speed | 12 m/min |
| Reclosure delay | 0-99 s |
| Programming | digitally from controller |
| Opening possibilities | controlled electrical signal, (NO - dry contact), (NO - dry contact, <1s), controlling wire - GND shortcut |
| Behaviour (in case of power off) | fail-secure, can be mechanically opened with a key |
| Operating modes | full opening, partial opening, fast closing, pedestrian gate |
|---|---|
| Other properties | - UPS capable - automatic movement path learning (opening/closing time), - adjustable speed, mass entry allowed (MM) - adjustable slowdown and obstacle detection level with potentiometer - quick remote control programming (even without entering the menu) |
| Battery charging current | 0,1A (24V) |
| Dimension of body | 310 x 330 x 190 mm |
| Product family | MOOVY - sliding gate, durable with high power |
| Installation area | outdoor |
| Mounting | surface mounted |
| Recommended use | for sliding gates, strudy residential use |

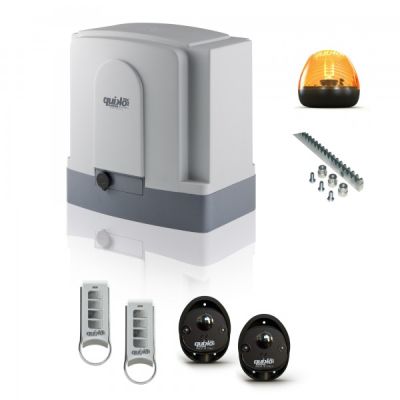

| Package contents | 1 gate operator, 1 mounting metal plate for the operator, 1 control board, 1 light, 1 pair of NC IR photocells, 2 mechanical limit stops, 2 remote controls, 2 emergency release keys, 2 mechanical end limiters, 4 pcs of 1 m metal racks metal (M4) |
| Compatible products | QK-LUX24LED (lamp), QK-BRALUX ("L" mounting bracket for the lamp), QK-M04 (remote control), QK-FTPO (photocell), QK-CRN(V3) (plastic rack reinforced with metal), QK-CRF3012 (narrow metal rack) |
| IP rating | IP54 |
| Environmental temperature | -30°C ~ +70°C |
| Warranty | 48 months* |
| Certificates | CE |
| Manufacturer | QUIKO |
| Product category | F |
