SKU
QK-M1200KIT(V2)
Sliding and swing gate operator automation - 230V AC - 50% working cycle
€520.00
Description
The QK-M1200KIT(V2) sliding and cantilever gate motor kit is part of QUIKO’s MOOVY product line, designed for more powerful residential and industrial use. The gate motor operates on 230V AC and is suitable for moving gates weighing up to 1200 kg.
Despite their compact size, MOOVY gate motors provide a relatively high amount of force. They feature a die-cast and powder-coated housing along with an extremely durable steel and bronze mechanism, making them quiet, reliable. The motors automatically lock the gates when closed and can be manually opened in case of emergency.
Thanks to the high-quality materials used, the MOOVY sliding and cantilever gate operator range requires minimal maintenance and offers high resistance and durability.
ATTENTION! The set includes only the motor drive, the controller, one pair of photocells, and two remote controls. The rack bars must be purchased separately depending on the size of the gate. Compatible rack types: QK-CRF3012 (narrow metal rack – M4).
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Maximum current consumtion (A) | 1,5 A |
| Motor type | AC (asynchronous) |
| Motor power (W) | 330 W |
| Control board | QK-CE2204UNISW |
| Capacitance of the capacitor | 16 µF |
| Maximum gate width | any up to the maximum weight limit |
| Maximal gate weight | 1200 kg |
| Working cycle | 50% (for medium usage) |
| Controlled output type | voltage output (auxiliary power, lamp) |
| Controlled output current rating | aux. power supply - 9,6W (24V DC @ 400mA), lamp - 30W (24V DC @ 1,25A) |
| Obstacle detection inputs | opening (internal) photocell (adjustable - NO/NC) , closing (external) photocell (adjustable - NO/NC) |
| Opening speed | 12 m/min |
| Reclosure delay | 0-99 s |
| Programming | digitally from controller |
| Opening possibilities | controlled electrical signal, (NO - dry contact), (NO - dry contact, <1s), remote control |
|---|---|
| Behaviour (in case of power off) | fail-secure, can be mechanically opened with a key |
| Operating modes | full opening, partial opening, fast closing, pedestrian gate |
| Other properties | - overheat protection (140°C), - semi-automatic movement path learning with remote control (opening/closing time, automatic closing) - adjustable speed, motor strength and operating mode (full opening, part opening, fast closeure, pedestrian gate), - digitally programmable outputs - "cold winter" and "kick-back" function - "single-leaf" and condominium mode - opening cycle counting, Error log feedback via display |
| Dimension of body | 310 x 330 x 190 mm |
| Product family | MOOVY - sliding gate, durable with high power |
| Installation area | outdoor |
| Mounting | surface mounted |
| Recommended use | for sliding gates, strudy residential use |

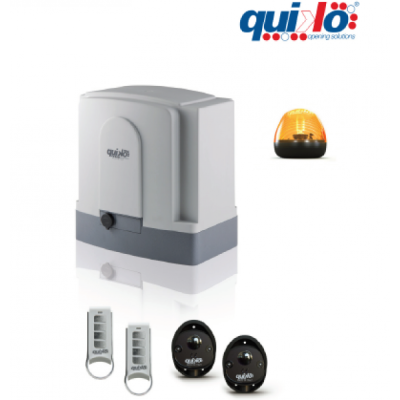

| Package contents | 1 gate operator, 1 mounting metal plate for the operator, 1 control board, 1 light, 1 pair of NC IR photocells, 2 mechanical limit stops, 2 remote controls, 2 emergency release keys, 2 mechanical end limiters |
| Compatible products | QK-LUX24LED (lamp), QK-BRALUX ("L" mounting bracket for the lamp), QK-M04 (remote control), QK-FTPO (photocell), QK-AN433-V4 (antenna), QK-MODRAL4 (external antenna modul), QK-ELOCKM (pulse control module - 12V DC @ 0,3/2A), QK-ELOCKM330 (pulse control module - 12V DC @ 0,5/4A), QK-RELAY (24V external relay - 230V @ 7A), QK-CRN(V3) (plastic rack reinforced with metal), QK-CRF3012 (narrow metal rack) |
| IP rating | IP54 |
| Environmental temperature | -30°C ~ +70°C |
| Warranty | 48 months* |
| Certificates | CE |
| Manufacturer | QUIKO |
| Product category | F |
