SKU
QK-T6000KIT
Sliding and swing gate operator automation - 400V AC - 70% working cycle
€2,950.00
Description
The QK-T6000TKIT sliding and cantilever gate motor kit is part of QUIKO’s TITANO product line, designed for heavy-duty industrial use. The gate motor operates on 400V AC and is suitable for moving gates weighing up to 6000 kg.
Thanks to its robust construction, the TITANO series is ideal for more demanding industrial applications. Due to the use of high-quality components, the motors are quiet, reliable, and maintenance-free. They automatically lock the gates when closed and can be manually opened in case of emergency.
More Information
| Voltage (V) | 400 V |
|---|---|
| Voltage type | AC |
| Maximum current consumtion (A) | 3,7 A |
| Motor type | AC (asynchronous) |
| Motor power (W) | 1500 W |
| Control board | QK-CE220RLX |
| Maximum gate width | any up to the maximum weight limit |
| Maximal gate weight | 4000 kg |
| Working cycle | 90% (for medium-high usage) |
| Controlled output type | voltage output (auxiliary power, lamp) |
| Controlled output current rating | aux. power supply - 6W (24V DC @ 250mA), lamp - 20W (24V DC @ 834mA) |
| Obstacle detection inputs | opening (internal) photocell (adjustable - NO/NC) , closing (external) photocell (adjustable - NO/NC) |
| Opening speed | 11 m/min |
| Reclosure delay | 0-99 s |
| Programming | manually from controller |
| Opening possibilities | controlled electrical signal, (NO - dry contact), (NO - dry contact, <1s), remote control |
| Behaviour (in case of power off) | fail-secure, can be mechanically opened with a key |
|---|---|
| Operating modes | full opening, pedestrian gate |
| Other properties | - adjustable speed, motor strength (in opening and closing phase) - adjustable operating mode (full opening, pedestrian gate) - automatic close - condominium mode |
| Dimension of body | 430 x 578 x 400 mm |
| Product family | TITANO - sliding gate, for industrial use |
| Installation area | outdoor |
| Mounting | surface mounted |
| Recommended use | for sliding gates, industrial usage |

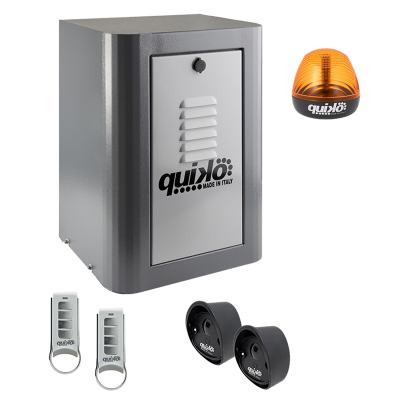

| Package contents | 1 gate operator, 1 mounting metal plate for the operator, 1 control board, 1 light, 1 pair of NC IR photocells, 2 mechanical limit stops, 2 remote controls, 2 emergency release keys, 2 mechanical end limiters |
| Compatible products | QK-LUX24LED (lamp), QK-BRALUX ("L" mounting bracket for the lamp), QK-M04 (remote control), QK-FTPO (photocell), QK-CRF2222 (metal rack) |
| IP rating | IP55 |
| Environmental temperature | -30°C ~ +70°C |
| Warranty | 48 months* |
| Certificates | CE |
| Manufacturer | QUIKO |
| Product category | F |
