SKU
TYWRA-RF

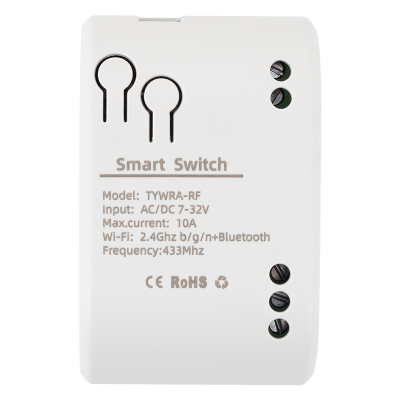

TYWRA-RF 1 channel RF+WiFi and Bluetooth relay module (TUYA compatible)
€18.40
Description
TYWRA-RF - 1 channel RF+WiFi and Bluetooth relay module (TUYA compatible)
TYWRA-RF is a WiFi module with 1 relay NO/NC output.
It can be used to control even powerful devices remotely via the internet using a smartphone or locally using the buttons on the device itself.
In the without of WiFi, Bluetooth is available within the limits of the technology. In the event of a power failure, the device can restart in its original state, but can also be powered from USB.
Downloads
More Information
| Voltage (V) | 7 - 32 V |
|---|---|
| Voltage type | AC/DC |
| Power supply requirement | permanent |
| Stand-by current consumption (A) | 45 mA |
| Maximum current consumtion (A) | 100 mA |
| Operation frequency | 433.92 MHz |
| Communication | Wifi 2.4 GHz |
| RF code type | Fix code |
| Number of channels | 1 |
| Number of controlled outputs | 1 |
| Controlled output type | relay (NO/NC) |
| Controlled output current rating | 10A @ 230V AC |
| Controlled output timing type | monostable, bistable, timed |
| Controlled output timing | Controlled by time programmes |
| Operating modes | timed |
| Power failure feedback | None |
|---|---|
| Antenna type | Panel antenna |
| Tamper protection | none |
| Dimensions | 69 x 41 x 20 mm |
| Installation area | indoor |
| Housing material | plastic ABS |
| Environmental temperature | -20°C - +70°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| Gross weight | 70 gr |
| Package contents | switch |
| Warranty | 12 months |
| Certificates | CE, RoHS |
| Product category | A |
| Other features | Compatible transmitters: TDQ-RC, WBK series remote controls |
