BMPB-EF3213-600-2
Intermediate element of BMPB-EF3213 automatic swing gate system
€6,018.00
Description
The BMPB-EF3213 series is a fully automatic swing gate system equipped with a brushless DC servomotor and rotary encoder. It is an excellent access control solution for office buildings, educational institutions, commercial facilities, and more. The components of the BMPB-EF3213 swing gate system include:
-
BMPB-EF3213-600-1+3: The two end elements of the swing gate system (MASTER and SLAVE).
-

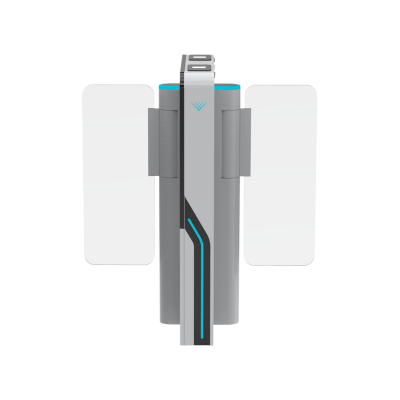

BMPB-EF3213-600-2: The intermediate element of the swing gate system (SLAVE/MASTER) - allowing the creation of two or more passage lanes.
In the event of a power outage or emergency, the gates automatically open, ensuring the safe evacuation of individuals within the building. The equipment is designed for use in areas protected from rain.
Downloads
More Information
| Color | black |
|---|---|
| Voltage (V) | 230 V |
| Voltage type | AC |
| Consumption (W) | 150 W |
| Motor type | DC servo (brushless) |
| Motor power (W) | 40 W |
| Body design | INOX |
| Dimension of body | 270 x 980 x 600 |
| Product family | automatic swing gate system - middle parts |
| Opening and closing time | adjustable |
| Automatic closeure | set from program (default 5s) |
| Reclosure delay | 1-25,5 s |
| Programming | digitally from controller |
| Opening possibilities | controlled electrical signal, (NO - dry contact, <1s) |
| Operating modes | 13 different |
| Other functions | protection against unauthorized access, automatic error detection, passage counter output |
| Communication | RS-485 |
|---|---|
| Passage direction | one-way/two-way |
| Passing speed | NO: ≤ 50 persons/min NC: ≤ 35 persons/min |
| Passing width | 600 mm |
| Emergency mode | in case of a power outage, the wing remains open |
| Built-in LED | above (dynamic) |
| Package contents | swing gate, fixing screws (in concrete) |
| Recommended use | high-traffic areas |
| Installation area | indoor, outdoor (rain-protected) |
| IP rating | IP45 |
| Environmental temperature | -25°C ~ +70°C |
| Humidity tolerance (non-condensing) | <90% |
| Gross weight | 85 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | BOOMX |
| Product category | A+ |
