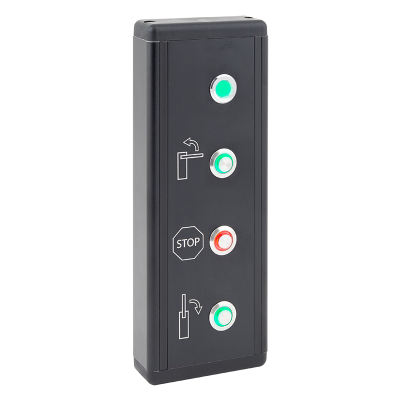

The BXC-REM-WIRE-1 is a wired 3-button control unit with a status indicator LED for barriers. The 3 push buttons and the indicator can be connected freely, making it ideal for controlling the barrier’s open, close, and emergency stop inputs, as well as providing feedback on the barrier arm’s end positions - either in the lower or upper limit. The product features an aesthetically pleasing black metal housing, which protects it from mechanical impacts. It is perfectly suitable for mounting on vertical or horizontal surfaces.
Mounting | surface mounted |
---|---|
Surface | metallic |
Material | metal |
Recommended use | for vehicle access control, for implementing controlled access |
Voltage (V) | 12 / 24 V |
Voltage type | DC |
---|---|
Dimensions | 215 x 80 x 30 mm |
Gross weight | 0,45 kg |
Warranty | 12 months |
Product category | B |
