SKU
BXSG-A306C-900-2

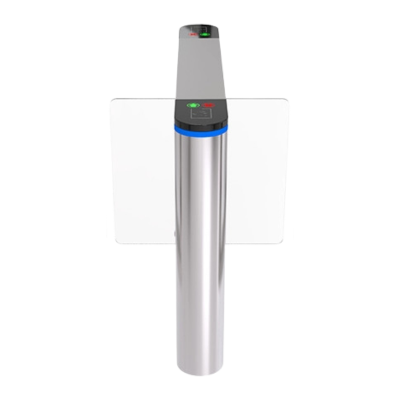

Swing gate system middle element (MASTER and SLAVE)
€3,470.00
Description
The BXSG-A306C is a series of fully automatic swing gates equipped with brushless DC servomotors and rotary encoders.
An excellent system for access control in office buildings, educational institutions, commercial facilities, and more.
Components of the BXSG-A306C swing gate system:
- • BXSG-A306C-900-1+3 -> The two end units of the swing gate system (SLAVE/MASTER).
- • BXSG-A306C-900-2 -> The intermediate element of the swing gate system (MASTER és SLAVE) - With its help, two or more passage lanes can be created.
The doors automatically open during a power outage or emergency, ensuring the safe evacuation of people inside the building.
The device is designed for use in rain-protected areas.
More Information
| Voltage (V) | 100 - 240 V |
|---|---|
| Voltage type | AC |
| Consumption (W) | 150 W |
| Motor type | DC brush |
| Motor power (W) | 40 W |
| Body design | brushed INOX ( 1.2 mm thickness, double folded edges) |
| Product family | automatic swing gate system - middle parts |
| Opening and closing time | adjustable |
| Automatic closeure | set from program (default 5s) |
| Reclosure delay | 1-25,5 s |
| Programming | digitally from controller |
| Opening possibilities | (NO - dry contact, <1s) |
| Operating modes | 13 different |
| Other functions | protection against unauthorized access, automatic error detection, passage counter output, sound feedback, LED indication, adjustable alarm mode |
| Communication | RS-485 |
| Passage direction | one-way/two-way |
|---|---|
| Passing speed | NO: ≤ 50 persons/min NC: ≤ 35 persons/min |
| Passing width | 900 mm |
| Emergency mode | in case of a power outage, the wing remains open |
| Built-in LED | above (dynamic) |
| Package contents | swing gate, fixing screws (in concrete) |
| Recommended use | high-traffic areas |
| Installation area | indoor |
| IP rating | IP44 |
| Environmental temperature | -25°C ~ +70°C |
| Humidity tolerance (non-condensing) | <90% |
| Gross weight | 140 |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | BOOMX |
| Product category | A+ |
