SKU
YK-TT112S+ONYX

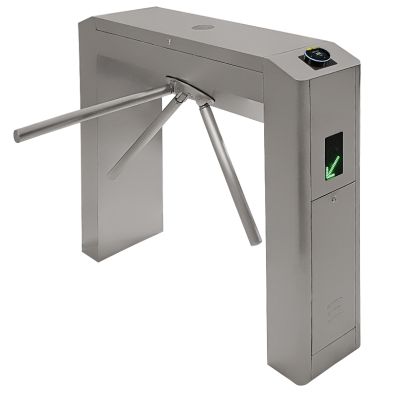

Bridge shaped semi-automatic turnstile with integrated credit card terminal
€2,928.00
Description
The YK-TT122S+ONYX is a bridge shaped turnstile with an integrated credit card terminal, enabling quick and contactless payments.
• Installation fee and transaction costs: The terminal installation fee is 6000 HUF, and a 4% handling fee is charged for each transaction. No other banking fees apply.
• Contract signing period: The contract signing process takes approximately 2-3 weeks, which includes the necessary administrative steps and agreement on service terms.
• Device installation: The system is delivered fully prepared, requiring only the securing of the device, power supply, and possibly the extension of the GSM antenna in shaded areas for installation.
• NAV registration: The equipment is suitable for registration with the NAV (Hungarian Tax and Customs Administration) and complies with the relevant legal requirements.
The turnstile set is delivered free of charge within Hungary.
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Power source capacity (A) | 6A @ 12V DC |
| Consumption (W) | 30 W |
| Body design | brushed INOX ( 1.2 mm thickness, double folded edges) |
| Dimension of body | 280 x 1000 x 1230 mm |
| Arm size and type | 500 mm (brushed) |
| Arm cross section | ø38 mm |
| Arm load capacity | middle of arm 80 kg, end of arm 40 kg |
| Return by springs | yes (helps to take position) |
| Lockable? | automatically after rollover |
| Product family | semi-automat, bridge-shape, turnstile |
| Automatic closeure | with DIP switch (default 2s) |
| Reclosure delay | 2 - 25 s |
| Opening possibilities | controlled electrical signal, (NO - dry contact, <1s), payment by credit card |
| Other functions | continous passage in one direction (adjustable with DIP switch) |
| Communication | RS485 (with BXC-SPIDER communicator) |
| Passage direction | one-way/two-way |
|---|---|
| Passing speed | 30-35 persons/min (100%) |
| Passing width | 550 mm |
| Emergency mode | in case of a power outage or emergency signal, it drops the arm, 12V DC appears on the ALARM output |
| Built-in LED | side (static) |
| Package contents | turnstile, arms, fixing screws (in concrete) |
| Compatible products | remote control module |
| Recommended use | high-traffic areas |
| Installation area | indoor, outdoor (rain-protected) |
| Life time | MCBF: 10 million turnovers |
| IP rating | IP42 |
| Environmental temperature | -25°C ~ +55°C |
| Humidity tolerance (non-condensing) | >90% |
| Gross weight | 40 kg |
| Warranty | 24 months |
| Certificates | CE |
| Manufacturer | BOOMX |
| Product category | A+ |
