0036 1 406 98 08
SKU
BMPB-B325(v2)-600-1+3
BMPB-B325 Automatic swing gate system
€9,750.00
Description

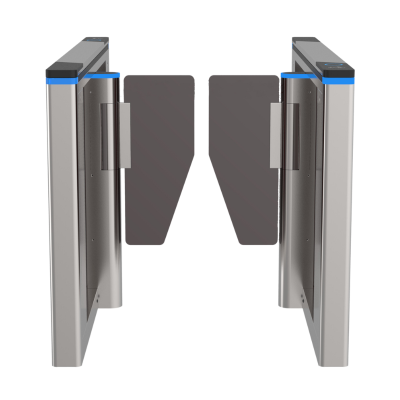

BMPB-B325(V2)-600-1+3 is the two edge elements of a fully automatic brushless DC servo motor swing gate system (MASTER and SLAVE).
The satin stainless steel body, Plexiglas arms and LED displays give it a sleek look and can be easily combined with modern building design elements.
The satin stainless steel body, Plexiglas arms and LED displays give it a sleek look and can be easily combined with modern building design elements.
Downloads
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Consumption (W) | 140 W |
| Motor type | DC servo (brushless) |
| Body design | INOX |
| Dimensions | 981 x 1500 x 980 mm |
| Dimension of body | 190,5 x 1500 x 980 mm |
| Wing size and type | 281 x 651 mm (plexiglass) |
| Product family | automatic swing gate system - side parts |
| Opening and closing time | adjustable |
| Automatic closeure | set from program (default 5s) |
| Reclosure delay | 1-25,5 s |
| Programming | digitally from controller |
| Opening possibilities | controlled electrical signal, (NO - dry contact, <1s) |
| Operating modes | 13 different |
| Other functions | protection against unauthorized access, automatic error detection, passage counter output |
| Communication | RS-485 |
|---|---|
| Passage direction | one-way/two-way |
| Passing speed | ≤ 35 persons/min |
| Passing width | 600/900 mm |
| Emergency mode | in case of a power outage, the wing remains open |
| Built-in LED | above (dynamic) |
| Package contents | swing gate, fixing screws (in concrete) |
| Recommended use | high-traffic areas |
| Installation area | indoor, outdoor (rain-protected) |
| IP rating | IP45 |
| Environmental temperature | -25°C ~ +70°C |
| Humidity tolerance (non-condensing) | <90% |
| Gross weight | 170 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | BOOMX |
| Product category | A+ |
