YK-CD-WG
RFID proxy card modul - gravitational - auxiliary
€109.00
Description

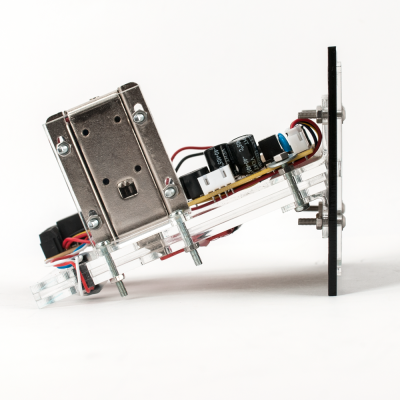

The YK-CD-WG is an auxilary RFID proxy card modul for YK-TT112 and YK-TT112S turnstiles. It is ideal for situations where you do not want guests to keep the card. In this case, the user must drop the card into the device upon passing, after which the device sends an open signal to the rotary actuator, then drops the card into the body of the rotary actuator. It is compatible with 85.6 × 53.98 mm size and 125 kHz EM RFID cards.
This product features a standalone reader for operation. The reader can read 125 kHz EM cards and can store up to 1,000 RFID card.
Downloads
More Information
| Product category | A |
|---|---|
| Type of device | RFID reader |
| Casing | without case |
| Type of readable cards | EM |
| Readable frequency | 125 kHz |
| Keyboard | No |
| Installation | can be built in |
| Installation environment | indoor |
| Environmental protection rating | no rating |
| Vandalproof protection | none |
| Method of security backup | none |
| Methods of adding users | via master cards |
| Communication methods | can work as Wiegand reader |
| Wiegand input bit rating | none |
| Wiegand output bit rating | 26 bit |
| Power supply | 12 V DC |
| Power consumption | 400 mA |
| Reading range | 2 cm |
|---|---|
| Language of internal menu | none |
| LED | No |
| Buzzer | Yes |
| Keyboard lighting | no |
| Number of controllable doors | 1 |
| Lock output type | dry contact (relay, NO/NC/COM) |
| Inputs | push button |
| Opening methods | only card |
| Bistable mode | No |
| Access control functions | normal |
| Events that cause alarm | no alarm |
| Alarm timing | nincs |
| Display | No |
| Other properties | forgóvillába építhatő |
| Warranty (for legal entities) | 12 months |
| Certificate | DOC |
