SKU
BMPB-X310-900(V3)
Swing gate - automatic - servo
€1,190.00
Description

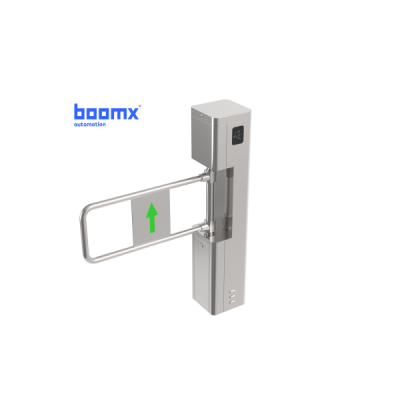

The BMPB-X310-900(V3) is a fully automatic swing gate equipped with a brushless DC servo motor and an encoder. It is ideal for access control in office buildings, educational institutions, and commercial facilities.
Its aesthetically pleasing yet robust SUS304 INOX housing and the cut-to-size arm provide an elegant appearance. The swing gate can be equipped with numerous peripherals and can be easily integrated with an access control system. It supports security sensors and can even control low-power RGB LED strips.
The device features dual fail-safe behavior. In an emergency, by short-circuiting the appropriate emergency inputs, the arm automatically opens in the designated direction. In case of a power outage, it can be moved freely, ensuring unobstructed escape routes for people inside the building.
The equipment is designed for indoor use.
| Auxiliary materials required for maintenance: | |||
 |
 |
 |
 |
|
BER-FEKTISZTITO Brake cleaner spray 500ml |
BER-INOXAPOLO Stainless steel care spray 400ml |
BER-UNISPRAY6+ Universals spray 400ml |
BER-HLS500 Lubricant spray 500ml |
Downloads
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Power source capacity (A) | 6,5A @ 24V DC |
| Motor type | DC servo (brushless) |
| Opening direction (DIN 107) | right/left |
| Body design | brushed INOX - SUS304 |
| Dimension of body | 200 x 200 x 1020 mm |
| Arm cross section | Ø25 mm |
| Wing size and type | 900 x 300 mm (bent pipe) |
| Wing cross section | ø25 mm |
| Product family | electric swing gate |
| Opening and closing time | adjustable |
| Automatic closeure | set from program (default 5s) |
| Reclosure delay | 1-25,5 s |
| Programming | digitally from controller |
| Opening possibilities | controlled electrical signal, (NO - dry contact) |
|---|---|
| Other functions | passage counter output, uninterruptable, méretre vágható szárny |
| Passage direction | one-way, two-way |
| Passing speed | ≤ 35 persons/min |
| Passing width | 900 mm |
| Emergency mode | in case of a power outage, the wing rotates freely |
| Package contents | swing gate, bent metal arm, screw set |
| Compatible products | BXC-SPIDER - RS485 communicator, CCA3 panels, INBIO panels |
| Recommended use | medium use, for implementing controlled access |
| Installation area | indoor |
| Environmental temperature | -20°C ~ 70°C |
| Humidity tolerance (non-condensing) | <90% |
| Gross weight | 20 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A+ |
