0036 1 406 98 08
SKU
YK-PB-M-ZL-A(L)

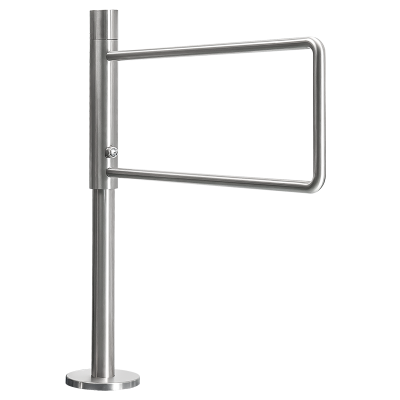

Mechanical swing gate, spring return, lockable, left-handed
€950.00
Description
Swing gates are an excellent means of personal access control, allowing people to enter in a controlled, safe and convenient manner. A major advantage of swing gates is that they can be easily used by people with limited mobility, people with strollers, or people with large luggage.
YK-PB-M-ZL-A - Spring return mechanical swing door with key lock 0°, 90° and 180° locking
Can be installed in an escape route!
| Auxiliary materials required for maintenance: | |||
 |
 |
 |
 |
|
BER-FEKTISZTITO Brake cleaner spray 500ml |
BER-INOXAPOLO Stainless steel care spray 400ml |
BER-UNISPRAY6+ Universal spray 400ml |
BER-HLS500 Lubricant spray 500ml |
| You can find the maintenance manual in the downloads section. | |||
Downloads
More Information
| Opening direction (DIN 107) | left |
|---|---|
| Body design | INOX |
| Wing size and type | 945,5 x 337 mm (bent pipe) |
| Wing cross section | ø27,5 mm |
| Return by springs | yes |
| Lockable? | yes (default) |
| Breaking point of the lock cylinder | ~200 N |
| Product family | mechanical swing gate |
| Passage direction | one-way |
| Passing width | 900 mm |
|---|---|
| Emergency mode | lock body breaks under 250 ~ 300N force |
| Package contents | swing gate, bent metal arm, screw set |
| Compatible products | YK-PB{TABLA} direction sign for swing gates |
| Recommended use | low traffic areas |
| Installation area | indoor, outdoor (rain-protected) |
| Gross weight | 8 kg |
| Warranty | 12 months |
| Product category | A |
