Turnstiles are one of the best tools for controlled personal entry, ensuring monitored, secure, quick, and convenient access for people. They can be ideal for a variety of locations, from office buildings to factories.

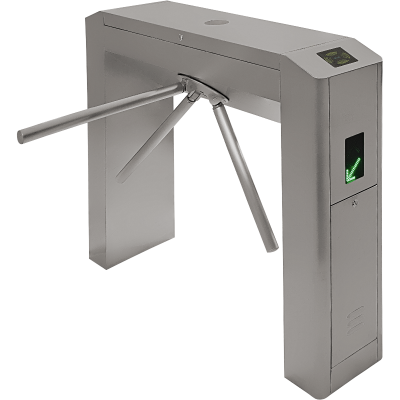

The YK-TT112 is a full-automatic bridge shaped turnstile. In the drop-arm design, the arm automatically drops in case of an emergency signal or power failure. It is available in an aesthetically pleasing INOX metal housing with a brushed finish. The body is made of sturdy 1.2 mm INOX sheet metal, with double-folded edges to increase stability. There is an option to adjust the opening time, close the passage routes. The device must be installed in a rain-protected area.
Due to their design and operation, automatic turnstiles are more convenient. We recommend them for more elegant locations (such as office buildings and hotels).
ATTENTION! Installing automatic turnstiles is not suitable for high-demand or high-traffic areas. If high throughput and low maintenance requirements are important, choose one of our semi-automatic models.
Voltage (V) | 230 V |
---|---|
Voltage type | AC |
Power source capacity (A) | 6A @ 12V DC |
Consumption (W) | 30 W |
Motor type | DC brush |
Body design | brushed INOX ( 1.2 mm thickness, double folded edges) |
Dimension of body | 280 x 1000 x 1230 mm |
Arm size and type | 500 mm (brushed) |
Arm cross section | ø38 mm |
Arm load capacity | middle of arm 80 kg, end of arm 40 kg |
Lockable? | automatically after rollover |
Product family | automatic, bridge-shape, turnstile |
Automatic closeure | set from program (default 5s) |
Reclosure delay | 3 - 9 s |
Programming | digitally from controller |
Opening possibilities | controlled electrical signal, (NO - dry contact, <1s) |
Communication | RS485 (with BXC-SPIDER communicator) |
Passage direction | one-way/two-way |
---|---|
Passing speed | 25 - 30 persons/min (80%) |
Passing width | 550 mm |
Emergency mode | in case of a power outage or emergency signal, it drops the arm |
Built-in LED | side (static), above (dynamic) |
Package contents | turnstile, arms, fixing screws (in concrete) |
Compatible products | remote control module, BXC-SPIDER - RS485 communicator |
Recommended use | low traffic areas |
Installation area | indoor, outdoor (rain-protected) |
Life time | MCBF: 10 million turnovers |
IP rating | IP42 |
Environmental temperature | -15°C ~ +55°C |
Humidity tolerance (non-condensing) | >90% |
Gross weight | 80 kg |
Warranty | 24 months |
Certificates | CE |
Manufacturer | BOOMX |
Product category | A+ |
