0036 1 406 98 08
SKU
YK-TT122S
Turnstile - 1 leg - semi automatic - drop-arm
€1,613.00
Description
Turnstiles are one of the best tools for controlled personal entry, ensuring monitored, secure, quick, and convenient access for people. They can be ideal for a variety of locations, from office buildings to factories.

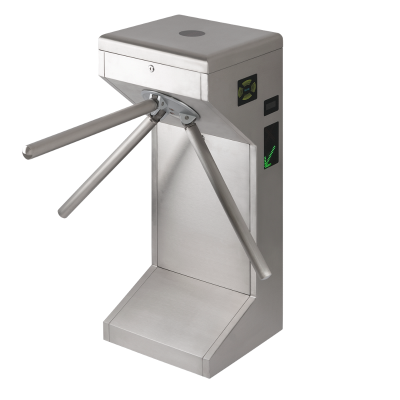

The YK-TT122S is a semi-automatic one leg turnstile. In the drop-arm design, the arm automatically drops in case of an emergency signal or power failure. It is available in an aesthetically pleasing INOX metal housing with a brushed finish. The body is made of sturdy 1.2 mm INOX sheet metal, with double-folded edges to increase stability. There is an option to adjust the opening time, close the passage routes, and it is equipped with counter and relay feedback outputs. We offer long-term, even on-site warranty upon contract. The device must be installed in a rain-protected area.
Thanks to their design and operation, semi-automatic turnstiles are more durable and thus suitable for high-demand locations (such as schools and factories).
Due to the design of the turnstile body and mechanism, we recommend it for high-traffic areas.
| Auxiliary materials required for maintenance: | |||
 |
 |
 |
 |
|

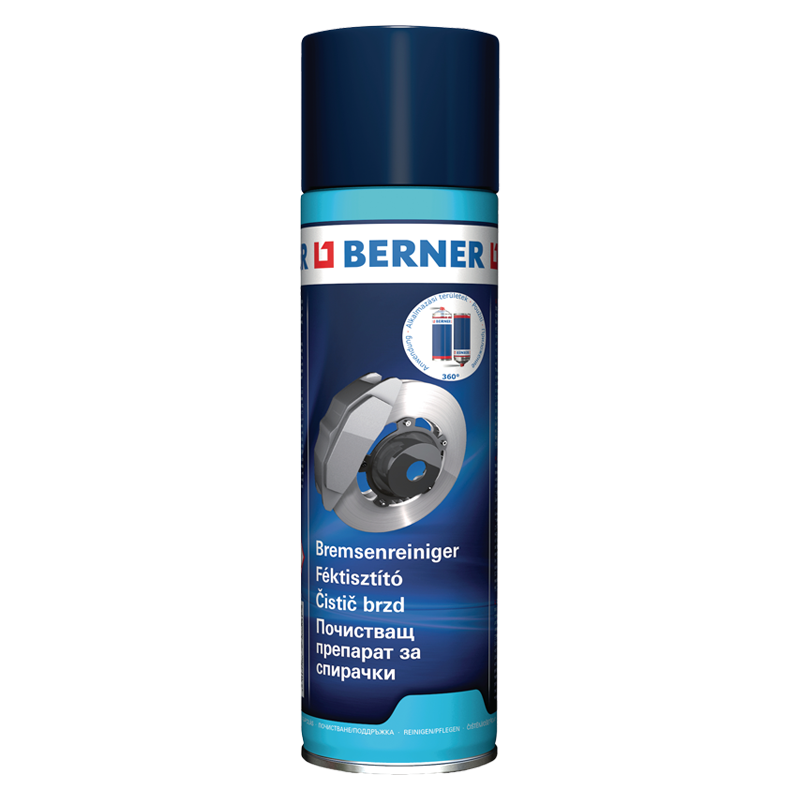

BER-FEKTISZTITO Brake cleaner spray 500ml |

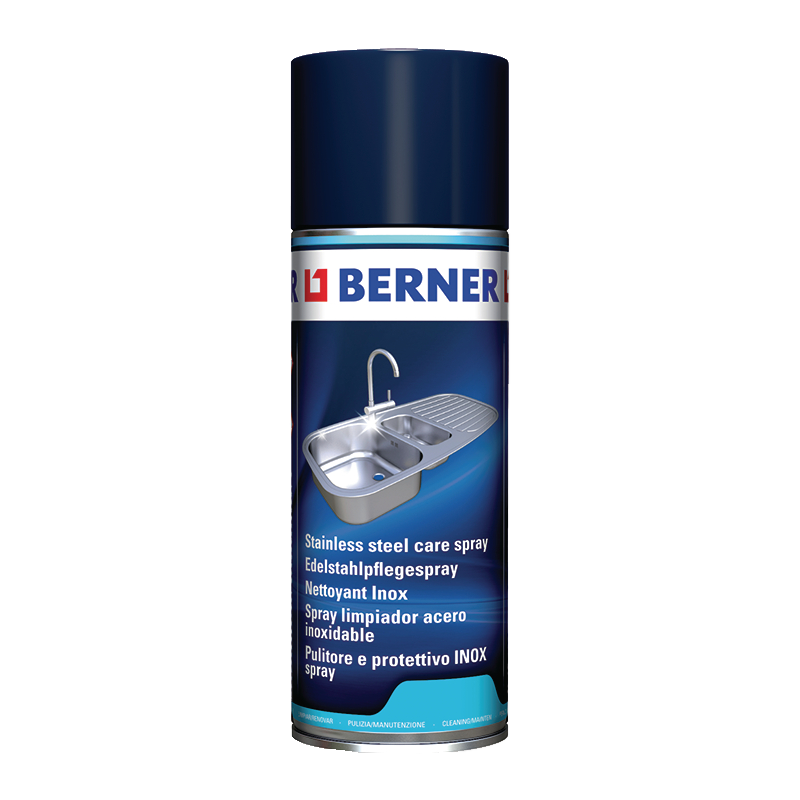

BER-INOXAPOLO Stainless steel care spray 400ml |

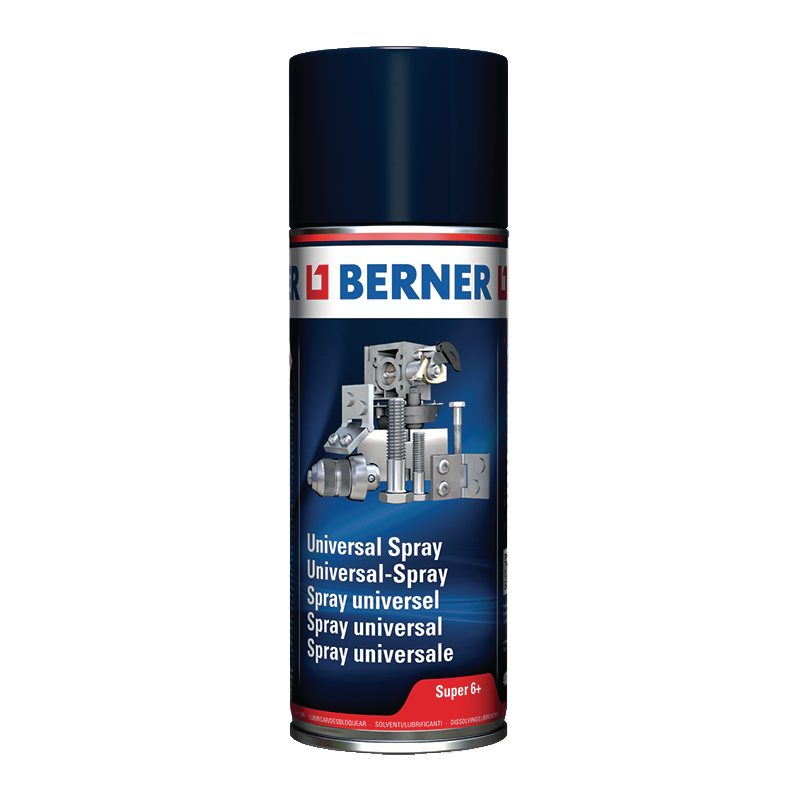

BER-UNISPRAY6+ Universalspray 400ml |

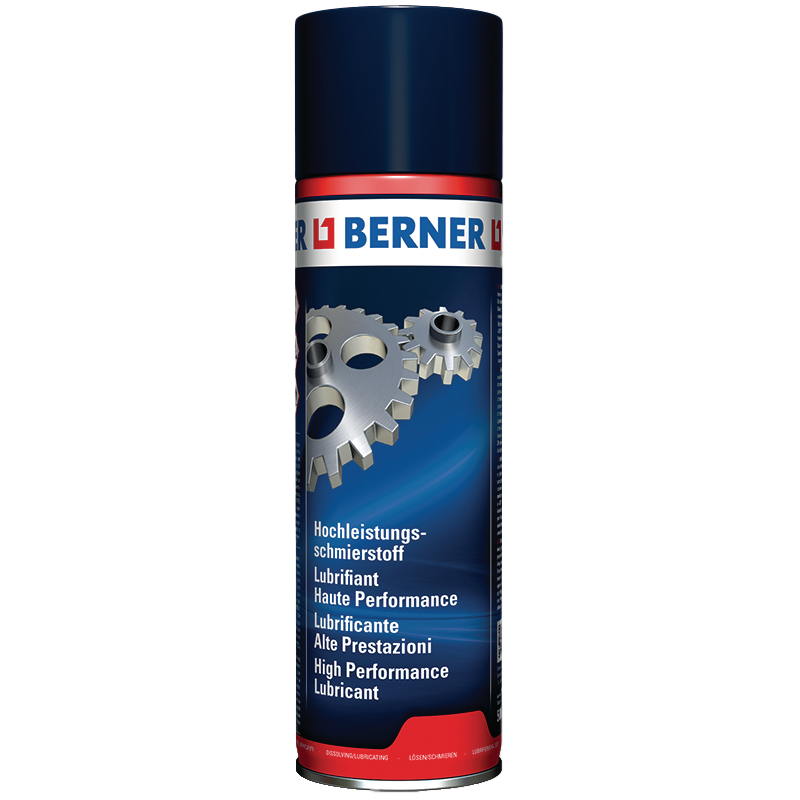

BER-HLS500 Lubricant spray 500ml |
More Information
| Voltage (V) | 230 V |
|---|---|
| Voltage type | AC |
| Power source capacity (A) | 6A @ 12V DC |
| Consumption (W) | 30 W |
| Body design | brushed INOX ( 1.2 mm thickness, double folded edges) |
| Dimension of body | 380 x 1000 x 420 mm |
| Arm size and type | 500 mm (brushed) |
| Arm cross section | ø38 mm |
| Arm load capacity | middle of arm 80 kg, end of arm 40 kg |
| Return by springs | yes (helps to take position) |
| Lockable? | automatically after rollover |
| Product family | semi-automat, normal-shape, turnstile |
| Automatic closeure | with DIP switch (default 2s) |
| Reclosure delay | 2 - 25 s |
| Opening possibilities | controlled electrical signal, (NO - dry contact, <1s) |
| Other functions | continous passage in one direction (adjustable with DIP switch) |
| Communication | RS485 (with BXC-SPIDER communicator) |
| Passage direction | one-way/two-way |
|---|---|
| Passing speed | 30-35 persons/min (100%) |
| Passing width | 550 mm |
| Emergency mode | in case of a power outage or emergency signal, it drops the arm, 12V DC appears on the ALARM output |
| Built-in LED | side (static), above (dynamic) |
| Package contents | turnstile, arms, fixing screws (in concrete) |
| Compatible products | remote control module, BXC-SPIDER - RS485 communicator |
| Recommended use | high-traffic areas |
| Installation area | indoor, outdoor (rain-protected) |
| Life time | MCBF: 10 million turnovers |
| IP rating | IP42 |
| Environmental temperature | -25°C ~ +55°C |
| Humidity tolerance (non-condensing) | >90% |
| Gross weight | 40 kg |
| Warranty | 24 months |
| Certificates | CE |
| Manufacturer | BOOMX |
| Product category | A+ |
