SKU
DR48240-02B

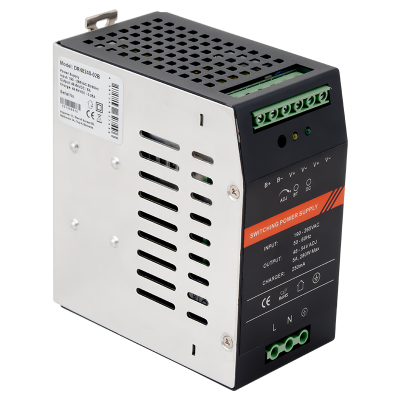

48V 5A switch-mode power supply with DIN rail mountable battery protection
€87.00
Description
The DR48240-02B is a DIN rail uninterruptible power supply designed for powering intercom systems and PoE switches. It features adjustable output voltage and can handle up to 5 A of load. It is equipped with automatic short-circuit protection and deep discharge protection. WARNING! Use only in covered, dry locations!
Downloads
More Information
| Voltage (V) | 190 - 265 V |
|---|---|
| Voltage type | AC |
| Output voltage | 48V - 54V DC |
| Power source capacity (A) | 5A @ 48V - 54V DC |
| Continuous power (W) | 270 W |
| Efficiency | ~88% |
| Type of connection | screw connection |
| Product family | switching power supply |
| Dimensions | 63 x 124 x 113 mm |
| Other functions | uninterruptable, LED indication, protected in- and output, filtered output, short-circuit protection, adjustable output voltage, deep discharge protection |
| Recommended use | for powering security and access control systems |
| Mounting | DIN rail |
|---|---|
| Installation area | indoor, covered, dry areas |
| Compatible products | batteries |
| Battery charging current | 0.25 A (decreases as the battery voltage increases) |
| Recommended battery replacement cycle | 1 year in security technology applications |
| Storage conditions | -30°C ~ +80°C |
| Environmental temperature | -20°C ~ +50°C |
| Humidity tolerance (non-condensing) | 20% ~ 80% |
| Gross weight | 0,921 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
