SKU
EC-10
Elevator control panel for 10 floors
€558.00
Description

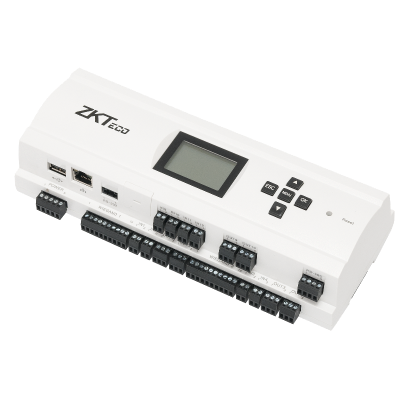

EC-10 - Elevator control panel for 10 floors
Elevator control panels are ideal for regulating access to specific floors based on user credentials and time of access. After identification via a card or fingerprint reader inside the elevator, the pre-configured system determines which floors the user is authorized to access, enabling only the corresponding control buttons.
EC-10 is an elevator control panel capable of managing up to 10 floors by itself. However, with the addition of EX-16 relay panels, the system can be expanded to control up to 58 floors. The panel can communicate with a computer via TCP/IP or RS485 connections. It also features a display with a built-in menu for setting communication parameters and checking current settings and data. Programming is done through a computer using English-language software.
To download the software installer, click the download link found in the downloads section. On the new page that appears, copy the link at the top left into your browser's address bar and visit the page (a Google Drive link). To purchase licenses, navigate to the software section in the website menu. The processing time for acquiring licenses typically takes around 1-3 business days.
More Information
| Product category | D |
|---|---|
| Number of lock outputs | 10 |
| Number of Wiegand readers | 4 |
| Number of push button inputs | 10 |
| Number of door contact inputs | 0 |
| Number of auxiliary inputs | 0 |
| Number of auxiliary outputs | 0 |
| CAN BUS terminal | No |
| Design | plastic housing with DIN rail connectivity |
| Programming | via paid software |
| PC communication | TCP/IP |
| Compatible software | ZKBiosecurity, ZKBioAccess |
| Reader communication | Wiegand, RS485 |
| Wiegand input bit rating | 26 ~ 37 bits, custom |
| Handles biometric data | Yes |
| Opening methods | PIN, RFID, fingerprint, push button, software |
| Opening combinations | only card, only PIN, card or PIN, card and PIN, ony biometric, card or biometric, card or PIN or biometric |
|---|---|
| Timing of opening signal | 0 ~ 254 seconds |
| Bistable mode | No |
| Access control functions | anti-passback, interlock system, multicard opening, passage mode, timezone control, door left open alarm, remote door control |
| Calculates attendance time | No |
| Capacity | 30,000 cards 30,000 PINs 3,000 fingerprints 100,000 events |
| Power supply | 12 V DC |
| Power consumption | 1 A |
| Type of lock outputs | dry contact (NC/COM) |
| Push button input type | NO |
| Dimensions | 242 × 95 × 60 mm |
| Working temperature | 0°C ~ 55°C |
| Humidity tolerance | 20% ~ 80% |
| Other properties | can be axpanded with EX-16 expansion panels to up to 58 floors (3 pcs of expansion panels) |
| Warranty (for legal entities) | 12 months |
| Certificate | CE, RoHS, FCC |
| Manufacturer | ZKTeco |
