SKU
MPB-085
MPB-085 Electric micro switch push bar - with sound and light alarm
€125.00
Description

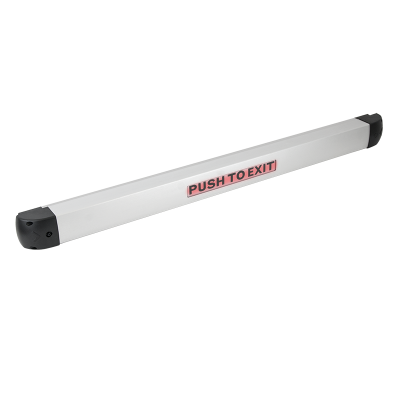

MPB-085 - Electric micro switch push bar with sound and light alarm
MPB-085 is an electric micro switch push bar for escape doors. With LED and buzzer feedback, timer. Ideal for controlling electric locks on escape doors. Can operate in two modes, stand alone or controlled.
The device can be cut to size, with adjustable volume and multi-colour light feedback.
More Information
| Voltage (V) | 12 - 24 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 75 mA |
| Maximum current consumtion (A) | 150 mA |
| Operating mode/Type of device | Push Bar Switch |
| Switch type | Microswitch |
| Type of switching | NO/NC |
| Number of switches | 2 |
| Controlled output current rating | 10A @ 24V DC |
| LED type | Three colours |
| LED colour | Red/green/blue |
| Controlled output timable | Yes |
| Controlled output timing | 0 - 60 sec |
| Tamper protection | none |
| Environmental temperature | 0°C - 70°C |
| Humidity tolerance (non-condensing) | max. 85% |
|---|---|
| IP rating | unclassified |
| IK rating | None |
| Mounting | surface mounted |
| Installation area | indoor |
| Housing material | metal and plastic ABS |
| Material | Plastic and metal |
| Dimensions | 850 x 60,5 x 60,5 mm |
| Gross weight | 1900 gr |
| Package contents | screw set, panic bar |
| Other features | Also has an adjustable volume signal |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
