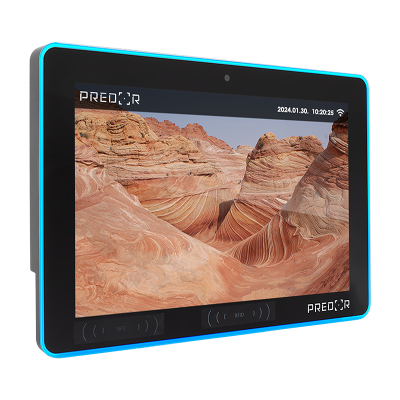

PRED-PI-B-01 is a reliable network time & attendance terminal that ensures real-time data processing on the server through continuous online communication. The device, equipped with a touch screen, resembles a large tablet, making it modern in appearance and easy to use.
The device features dual card readers, supporting both 125 kHz EM and 13.56 MHz MIFARE (NFC) type cards, providing flexible identification for various applications. The terminal can be powered by a traditional electrical network or via PoE (Power over Ethernet) technology, simplifying installation.
The number of users that can be managed depends on the purchased software license, allowing the system to scale according to the company’s needs. The Predor Enterprise base software is required for its use (Predor Lite is not sufficient), as well as the Predor time attendance module. For more than 20 users, both the base software and the time attendance module need to be upgraded according to the appropriate number of users. The device can be configured with up to 99 unique pay codes, making it flexibly applicable to any organizational structures and job roles.
PRED-PI-B-01 terminal is black in color, but a white version (PRED-PI-W-01) is also available, making it aesthetically adaptable to any workplace environment.
Color | red-green-blue (RGB) |
---|---|
Product category | D+ |
Type of device | RFID reader |
Casing | plastic case |
Type of readable cards | EM |
Readable frequency | 125 kHz, 13.56 MHz |
Keyboard | No |
Installation environment | indoor |
Environmental protection rating | no rating |
Vandalproof protection | none |
Capacity | 1,000,000 events |
Method of security backup | none |
Methods of adding users | from PC |
Communication methods | USB, TCP/IP, WiFi |
---|---|
Power consumption | 1.5 A |
Dimensions | 256.36 × 178.36 × 28 mm |
Reading range | <5 cm |
Language of internal menu | English, Hungarian |
LED | Yes |
Buzzer | No |
Bistable mode | No |
Display | Yes |
Working temperature | 0°C ~ 40°C |
Humidity tolerance | <80% (non condensing) |
Warranty (for legal entities) | 12 months |
Certificate | CE |
Manufacturer | Predor |
