0036 1 406 98 08
SKU
5C-65B-N

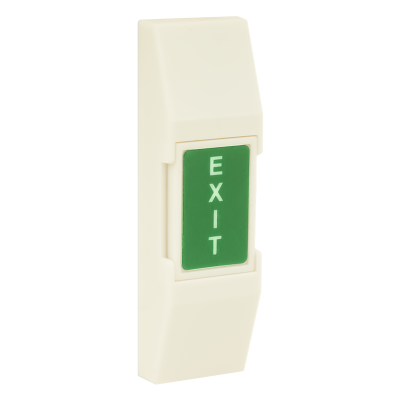

5C-65B-N Push button, plastic, narrow, with EXIT label
€2.00
Description
The 5C-65B-N is a narrow plastic panic button with NO/NC output. Simple, easy to install and conceal, quiet push button, which is a great advantage for the function of the device. The push button housing is phosphorescent, making it easy to see in the dark.
Downloads
More Information
| Operating mode/Type of device | Panic button |
|---|---|
| Switch type | Press release |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 3A @ 36V DC |
| Tamper protection | none |
| Environmental temperature | -10°C - +50°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Mounting | surface mounted |
|---|---|
| Installation area | indoor |
| Housing material | plastic ABS |
| Dimensions | 76 x 22 x 14mm |
| Gross weight | 16 gr |
| Package contents | screw set, panic button |
| Other features | Fluorescence housing |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
