0036 1 406 98 08
SKU
CPK-860B
Break glass manual call point for sprinkler starters - yellow
€8.50
Description

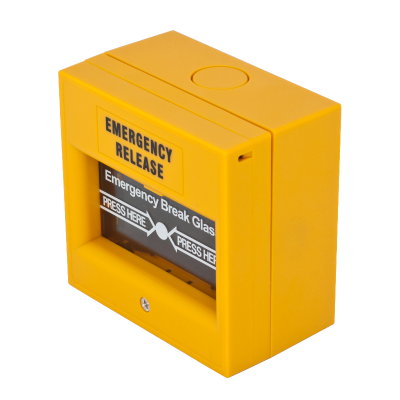

CPK-860B - Break glass manual call point for sprinkler starters - yellow
Almost everyone has encountered manual call points as an indispensable part of alarm and access control systems. There are two basic versions, those with a push-in tab and those with breakable glass. They are available in different colours, each colour being "dedicated" to a different system, but this can be deviated from if the task at hand so requires.
The CPK-860B is the yellow version of the CPK-860B series of breakable glass manual call points, basically for sprinkler starter systems. The breakable glass can be replaced afterwards (CPK-860|GLASS)
The device can also be tested without breaking the glass by inserting the reset key (CPK-861|KEY) in the slot provided for this purpose.
Downloads
More Information
| Operating mode/Type of device | Manual call point |
|---|---|
| Switch type | Microswitch |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 8A @ 30V DC |
| Tamper protection | none |
| Environmental temperature | -30°C - +70°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Mounting | surface mounted |
| Installation area | indoor |
|---|---|
| Housing material | plastic ABS |
| Material | Glass and plastic |
| Dimensions | 86 x 86 x 52 mm |
| Gross weight | 165 gr |
| Package contents | manual call point, reset/test key |
| Compatible devices | CPK-860|COVER, CPK-860|GLASS-ENG, CPK-860|GLASS-TUZ, CPK-860|GLASS-VESZ, CPK-861|KEY |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
