CPK-860D

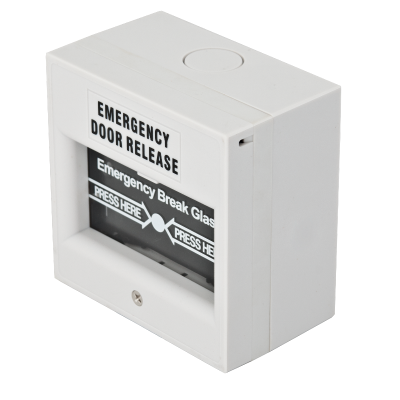

Break glass manual call point for ventilation system - white
€8.50
Description
CPK-860D - Break glass manual call point for ventilation system
Almost everyone has encountered manual call points as an indispensable part of alarm and access control systems. There are two basic versions, those with a push-in tab and those with breakable glass. They are available in different colours, each colour being "dedicated" to a different system, but this can be deviated from if the task at hand so requires.
The CPK-860D is the white version of the series, basically for ventilation system. The breakable glass can be replaced afterwards (CPK-860|GLASS)
The device can also be tested without breaking the glass by inserting the reset key (CPK-861|KEY) in the slot provided for this purpose.
Downloads
More Information
| Operating mode/Type of device | Manual call point |
|---|---|
| Switch type | Microswitch |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 8A @ 30V DC |
| Controlled output timable | No |
| Tamper protection | none |
| Environmental temperature | -30°C - +70°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Mounting | surface mounted |
|---|---|
| Installation area | indoor |
| Housing material | plastic ABS |
| Material | Glass and plastic |
| Dimensions | 86 x 86 x 52 mm |
| Gross weight | 165 gr |
| Package contents | manual call point, reset/test key |
| Compatible devices | CPK-860|COVER, CPK-860|GLASS-ENG, CPK-860|GLASS-TUZ, CPK-860|GLASS-VESZ, CPK-861|KEY |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
