0036 1 406 98 08
SKU
TSK-T2

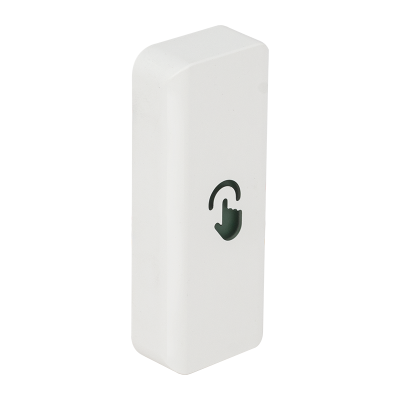

Surface mounted touch exit button - 80x32 mm - NO/NC
€14.25
Description
TSK-T2 - Surface mounted touch exit button - NO/NC
With their modern design and reliable switching technology, touch-sensitive switches are a transition between pushbuttons and touchless switches.
The TSK-T2 is a capacitive surface-mounted touch exit button with NO/NC relay output. The two-colour LED indication is blue when at rest and green when active.
Downloads
More Information
| Voltage (V) | 12 - 24 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 30 mA |
| Maximum current consumtion (A) | 60 mA |
| Operating mode/Type of device | Touch button |
| Switch type | Relay |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 2A @ 30V DC |
| LED type | Two colours |
| LED colour | Blue/green |
| Detection adjustable | No |
| Controlled output timable | No |
| Tamper protection | none |
| Environmental temperature | -20°C - +55°C |
|---|---|
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Mounting | surface mounted |
| Installation area | indoor |
| Housing material | plastic ABS |
| Material | Plastic and metal |
| Dimensions | 80 x 32 x 16 mm |
| Gross weight | 38 gr |
| Package contents | screw set, switch, cable (for connection) |
| Warranty | 12 months |
| Certificates | CE, RoHS |
| Product category | A |
