SKU
KA86B
Surface-mounted brushed finish infrared sensor exit button-black colour
€29.00
Description

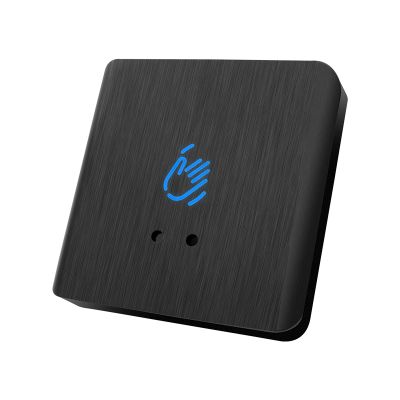

KA86B Surface-mounted brushed finish infrared sensor exit button-black colour
Infrared sensor exit buttons with their above-average technological prowess, elegant and modern appearance can be used almost anywhere. No need to use a proximity switch, the infrared sensor detects the approaching hand and switches the output.
The KA86B is a fiber-brushed, infrared sensor exit button with adjustable timing and detection distance. Thanks to the surface design of the switch - IP66 protection - it can be mounted outdoors. The two-colour status LED is blue when standby and green when active. Can be used in access control systems to open/close doors with electric locks.
Downloads
More Information
| Voltage (V) | 12 - 24 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 25 mA |
| Maximum current consumtion (A) | 60 mA |
| Operating mode/Type of device | Infrared Touchless Sensor Button |
| Switch type | Relay |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 2A @ 24V DC |
| LED type | Two colours |
| LED colour | Blue/green |
| Detection adjustable | Yes |
| Detection distance | 5 - 20 cm |
| Controlled output timable | Yes |
| Controlled output timing | 1 - 30 sec |
| Tamper protection | none |
|---|---|
| Environmental temperature | -20°C - +55°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | IP66 on the switch surface |
| IK rating | None |
| Mounting | surface mounted |
| Installation area | indoor, outdoor (rain-protected) |
| Housing material | metal and plastic ABS |
| Material | Plastic and metal |
| Dimensions | 86 x 86 x 14 mm |
| Gross weight | 139 gr |
| Package contents | screw set, switch, cable (for connection) |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
