ISK-841C - Infrared sensor exit button with INOX shield, INOX pajzzsal, timer and detection distance adjustment.
Infrared sensor exit buttons with their above-average technological prowess, elegant and modern appearance can be used almost anywhere. No need to use a proximity switch, the infrared sensor detects the approaching hand and switches the output.

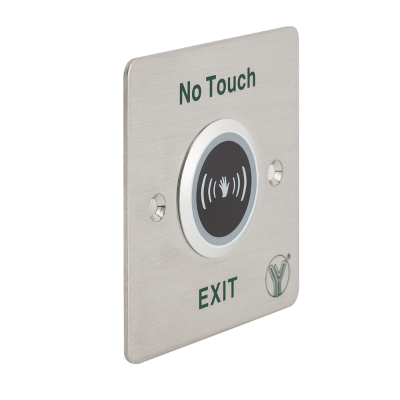

The ISK-841C is a infrared sensor exit button with aesthetic stainless INOX shield, "NO TOUCH" above the switch and "EXIT" below. There is a ring LED around the switch which changes from red to green when switched on and is not adjustable. The output timing and sensing distance can be adjusted with a potentiometer on the back of the switch.
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 25 mA |
| Maximum current consumtion (A) | 55 mA |
| Operating mode/Type of device | Infrared Touchless Sensor Button |
| Switch type | Relay |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 1A @ 30V DC |
| LED type | Two colours |
| LED colour | Red/green |
| Detection adjustable | Yes |
| Detection distance | 4 - 12 cm |
| Controlled output timable | Yes |
| Controlled output timing | 1 - 25 sec |
| Tamper protection | none |
| Dimension of faceplate | 86 x 86 mm |
| Mortise dimension | Ø45 x 24 mm |
|---|---|
| Environmental temperature | -20°C - +55°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Mounting | flush mounted |
| Installation area | indoor |
| Housing material | metal and plastic ABS |
| Material | Plastic and metal |
| Dimensions | 86 x 86 x 26 mm |
| Gross weight | 167 gr |
| Package contents | switch, cable (for connection) |
| Compatible devices | MBB-800B-P, MBB-800B-PM, EBOX-3, M86-42-1 |
| Manufacturer | YLI |
| Warranty | 12 months |
| Certificates | CE, EMC (EN 50130) |
| Product category | A |
