0036 1 406 98 08
SKU
EBUTTON-2
Infrared sensor exit button with LED, adjustable detection distance, IP66 surface protection
€18.85
Description

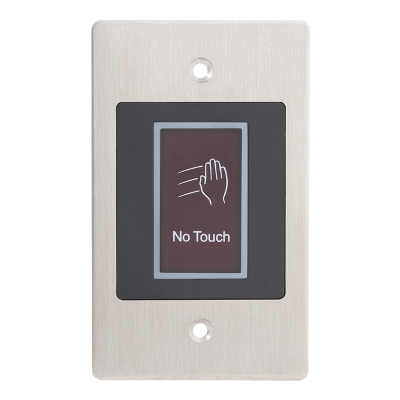

The EBUTTON-2 is a stainless steel shielded, flush-mounted, infrared sensor exit button with a brushed finish. Detection distance - adjustable between 3 and 15 cm.
It also has a two-colour status LED, which lights blue in standby mode and green when the output is active. Thanks to its adjustable and constant parameters, it is suitable for a wide range of applications. However, it is mainly used in access control systems, for opening and closing doors with electric locks and for controlling other access points.
Downloads
More Information
| Voltage (V) | 12 - 24 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 15 mA |
| Maximum current consumtion (A) | 25 mA |
| Operating mode/Type of device | Infrared Touchless Sensor Button |
| Switch type | Relay |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 2A @ 24V DC |
| LED type | Two colours |
| LED colour | Blue/green |
| Detection adjustable | Yes |
| Detection distance | 3 - 15 cm |
| Controlled output timable | No |
| Tamper protection | none |
| Dimension of faceplate | 115 x 70 mm |
| Mortise dimension | 44 x 63 x 21 mm |
|---|---|
| Environmental temperature | -20°C - +60°C |
| Humidity tolerance (non-condensing) | max. 86% |
| IP rating | IP66 on the switch surface |
| IK rating | None |
| Mounting | flush mounted |
| Installation area | indoor, outdoor |
| Housing material | metal and plastic ABS |
| Dimensions | 115 x 70 x 25 mm |
| Gross weight | 160 gr |
| Package contents | screw set, switch |
| Compatible devices | EBOX-2, MBB-811D-M |
| Other features | Electronics dimensions: 62 x 44 x 21 mm |
| Manufacturer | SecuKey |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
