0036 1 406 98 08
SKU
K40B-W
Infrared sensor exit button - Green LED - in black - Waterproof (IP68)
€26.50
Description

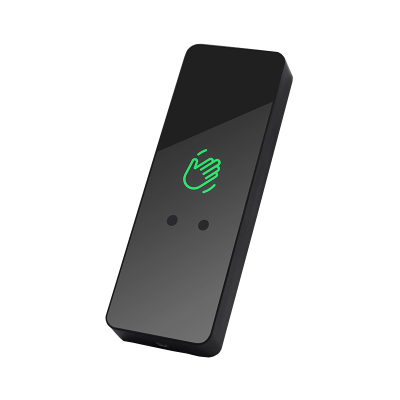

K40B-W - Infrared sensor exit button surface mount with IP protected housing
Infrared sensor exit buttons with their above-average technological prowess, elegant and modern appearance can be used almost anywhere. No need to use a proximity switch, the infrared sensor detects the approaching hand and switches the output.
The K40B-W is an infrared sensor exit button with adjustable timing and detection distance, with IP68 surface protected housing. The two-colour status LED is illuminated in blue when standby and green when active. Can be used in access control systems, e.g. for opening/closing doors.
Downloads
More Information
| Voltage (V) | 12 - 24 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 10 mA |
| Maximum current consumtion (A) | 15 mA |
| Operating mode/Type of device | Infrared Touchless Sensor Button |
| Switch type | Transistor |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 1A @ 30V DC |
| LED type | Two colours |
| LED colour | Blue/green |
| Detection adjustable | Yes |
| Detection distance | 5 - 20 cm |
| Controlled output timable | Yes |
| Controlled output timing | 0,5 - 30 sec |
| Tamper protection | none |
|---|---|
| Environmental temperature | -20°C - +60°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | IP68 on the switch surface |
| IK rating | None |
| Mounting | surface mounted |
| Installation area | indoor, outdoor |
| Housing material | plastic ABS |
| Material | Plastic |
| Dimensions | 115 x 40 x 14 mm |
| Gross weight | 89 gr |
| Package contents | screw set, switch, cable (for connection) |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
