0036 1 406 98 08
SKU
SI-98
Infrared sensor exit button - LED red/green - NO/NC - With timer - Dripproof IP65
€43.00
Description

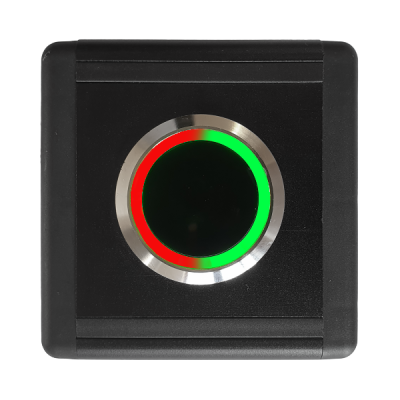

SI-98 - Infrared sensor exit button with surface mount housing, NO/NC output
Infrared sensor exit buttons with their above-average technological prowess, elegant and modern appearance can be used almost anywhere. No need to use a proximity switch, the infrared sensor detects the approaching hand and switches the output.
The SI-98 is a infrared sensor exit button with an aesthetic surface-mount housing. It has a wide range of applications thanks to its adjustable detection distance, timing and other specifications. Access control, asset protection, object motion detection.
More Information
| Voltage (V) | 12 - 24 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 30 mA |
| Maximum current consumtion (A) | 45 mA |
| Operating mode/Type of device | Infrared Touchless Sensor Button |
| Switch type | Relay |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 1A @ 30V DC |
| LED type | Two colours |
| LED colour | Red/green |
| Detection adjustable | Yes |
| Detection distance | 4 - 15 cm |
| Controlled output timable | Yes |
| Controlled output timing | 1 - 30 sec, bistable |
| Tamper protection | none |
|---|---|
| Environmental temperature | -10°C - +70°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | IP65 on the switch surface |
| IK rating | None |
| Mounting | surface mounted |
| Installation area | indoor, outdoor (rain-protected) |
| Housing material | metal and plastic ABS |
| Material | Plastic and metal |
| Dimensions | 80 x 80 x 31 mm |
| Gross weight | 198 gr |
| Package contents | screw set, switch, cable (for connection) |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
