0036 1 406 98 08
SKU
KY-B-SS-2-rdgn
Two-position key switch with two-colour LED feedback with 86x86 shield and NO/NC output
€19.25
Description
|

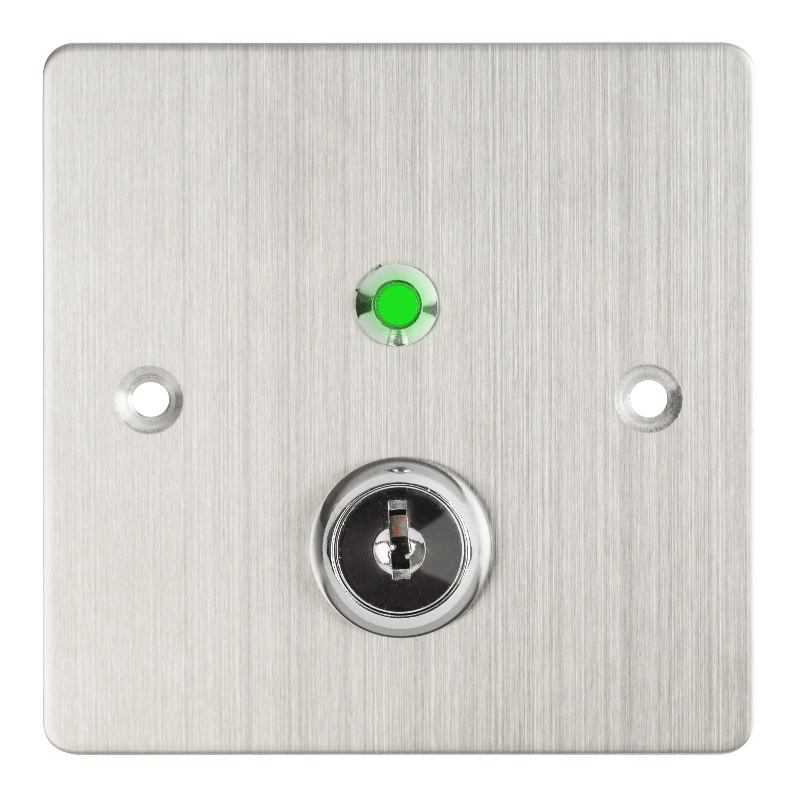

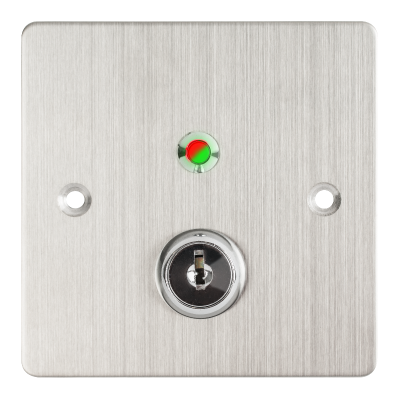

KY-B-SS-2-rdgn - Two-position key switch with two-colour LED feedback 86x86 shield with NO/NC output Key-operated micro-switches allow you to manually switch between the outputs of the switch by means of the key, and can be used to control several locks or control units. The KY-B-SS-2-rdgn is a two-position key switch with a brushed metal shield. It is protected against unauthorised disconnection by a tamper switch and the position of the switch is indicated by red and green LEDs. Thanks to its NO and NC outputs, multiple locking and control wiring is possible. Different coloured wires facilitate wiring. It can be recessed or surface mounted using a mounting box. The package includes the switch, 2 keys and a spring for the tamper switch. |
 |
Downloads
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 15 mA |
| Maximum current consumtion (A) | 25 mA |
| Operating mode/Type of device | Release button with key |
| Switch type | Microswitch |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 1A @ 30V DC |
| LED type | Two colours |
| LED colour | Red/green |
| Controlled output timable | No |
| Tamper protection | yes (tamper switch) |
| Dimension of faceplate | 86 x 86 mm |
| Mortise dimension | 38 x 57 x 25 mm |
| Environmental temperature | -10°C - +55°C |
| Humidity tolerance (non-condensing) | max. 95% |
|---|---|
| IP rating | unclassified |
| IK rating | None |
| Key removal in all positions | Yes |
| Mounting | flush mounted |
| Installation area | indoor |
| Housing material | metal |
| Material | Plastic and metal |
| Dimensions | 86 x 86 x 35 mm |
| Gross weight | 180 gr |
| Package contents | screw set, keys, switch |
| Compatible devices | EBOX-3, M86-42-1, MBB-800B-P, MBB-800B-PM, MBB-B-SS-H |
| Other features | 2 db kulcs |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
