0036 1 406 98 08
SKU
YKS-803D2
Surface mounted impulse key switch flat design - black
€21.50
Description

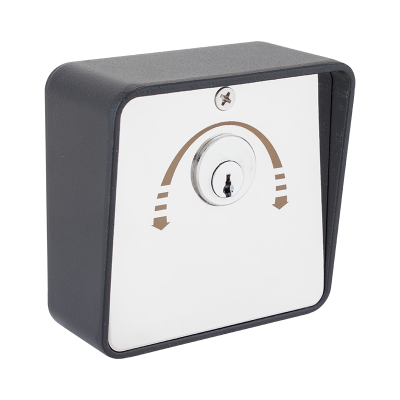

YKS-803D2 - Surface mounted impulse key switch flat design - black
Key-operated micro-switches allow you to switch between the outputs of the switch manually with the key, and can be used to control several locks or control units.
The YKS-803D2 is a impulse key-operated switch with EUROPROFIL lock insert in a vandal-proof metal housing, ideal for controlling grilled and sliding doors, roller shutters and automatic doors.
The switch contains two high capacity microswitches which, depending on the wiring, either give a signal as long as the key is in the reset position or only when the key is turned.
The package contains 3 keys, which are not " equal keys ", but can be copied.
More Information
| Operating mode/Type of device | Release button with key |
|---|---|
| Switch type | Microswitch |
| Type of switching | NO/NC |
| Number of switches | 2 |
| Controlled output current rating | 8A @ 250V AC |
| Controlled output timable | No |
| Tamper protection | none |
| Environmental temperature | -10°C - +50°C |
| Humidity tolerance (non-condensing) | max. 85% |
| IP rating | IP44 |
| IK rating | IK09 |
| Key removal in all positions | No |
| Mounting | surface mounted |
|---|---|
| Installation area | indoor, outdoor (rain-protected) |
| Housing material | metal |
| Material | Metal |
| Dimensions | 86 x 84 x 42 mm |
| Gross weight | 397 gr |
| Package contents | keys, switch |
| Other features | 3 pcs key |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
