0036 1 406 98 08
SKU
SP-WSS

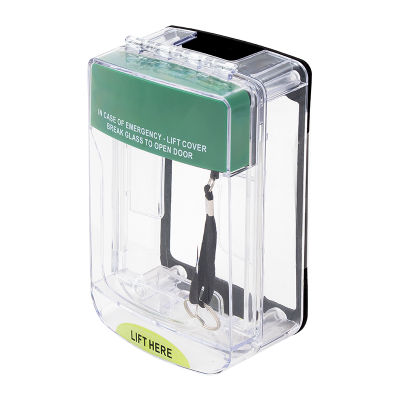

Rain protection for manual call point - with adjustable buzzer, and LED
€101.00
Description
The SP-WSS is a surface-mounted rain protection box for SCP and CPK type manual call points with alarm function.
The front of the device is a sealable plexiglass cover to prevent accidental opening. With the SP-WSS, manual call points can be installed both outdoors and indoors. The SP-WSS type, has a beeping buzzer which sounds an acoustic signal when the front panel is opened. It is adjustable in volume: LOW: 87dB, HIGH: 93dB. It also has an LED indicator. The beeper and LED is powered by a CR123A BATTERY, which is included in the basic package.
More Information
| Voltage (V) | 3 V |
|---|---|
| Voltage type | battery (1 x CR123A) |
| Stand-by current consumption (A) | 15 µA |
| Maximum current consumtion (A) | 19 mA |
| Operating mode/Type of device | Cover |
| Tamper protection | yes (tamper switch) |
| Environmental temperature | -30°C - +60°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | IP65 |
| IK rating | IK02 |
| Mounting | surface mounted |
| Installation area | indoor, outdoor |
|---|---|
| Housing material | plastic ABS |
| Material | Plastic and metal |
| Dimensions | 194 x 118 x 73 mm |
| Gross weight | 530 gr |
| Package contents | protecting rubber, screw set, seal, protective cover |
| Compatible devices | SCP and CPK series manual call points |
| Other features | Sticker set in multiple languages |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE, RoHS |
| Product category | A |
