0036 1 406 98 08
SKU
FMB-B-25SS-2-rd
Flat mushroom shaped push button with 86x86 mm shield - NO-NC - red
€13.75
Description
FMB-B-25SS-2-yz - Flat, mushroom-shaped pushbutton with micro-switch, with NO-COM and NC-COM outlets.
Available in a variety of colours, shapes and sizes, they can be flush or surface mounted, but they all have one thing in common - they couldn't be easier to install and use. These pushbuttons are not suitable for direct control of electromechanical, electromagnetic locks and for transmitting voltage outputs, even in the short term, due to their physical design and operation. Even if the load data indicate that they can. For such options, relays and relay modules need to be inserted in circuits or can be used for relay outputs of access panels and controllers. They are ideal when a door needs to restrict access in one direction only, but allows free movement in the other direction.

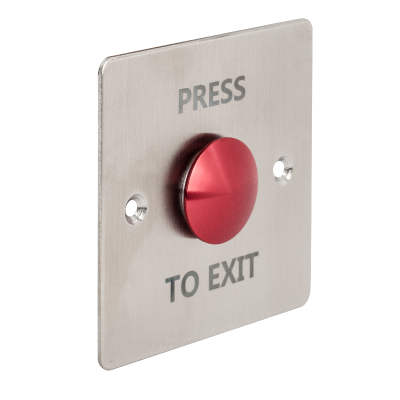

The FMB-B-25SS-2-rd is a flat, red-coloured, mushroom-shaped pushbutton with micro-switch. It has a 86 x 86 mm brushed surface with "PRESS TO EXIT" marked on the stainless steel shield.
Available in a variety of colours, shapes and sizes, they can be flush or surface mounted, but they all have one thing in common - they couldn't be easier to install and use. These pushbuttons are not suitable for direct control of electromechanical, electromagnetic locks and for transmitting voltage outputs, even in the short term, due to their physical design and operation. Even if the load data indicate that they can. For such options, relays and relay modules need to be inserted in circuits or can be used for relay outputs of access panels and controllers. They are ideal when a door needs to restrict access in one direction only, but allows free movement in the other direction.
The FMB-B-25SS-2-rd is a flat, red-coloured, mushroom-shaped pushbutton with micro-switch. It has a 86 x 86 mm brushed surface with "PRESS TO EXIT" marked on the stainless steel shield.
Downloads
More Information
| Operating mode/Type of device | Push button |
|---|---|
| Switch type | Microswitch |
| Type of switching | NO and NC |
| Number of switches | 1 |
| Controlled output current rating | 3A @ 36V DC |
| Controlled output timable | No |
| Tamper protection | none |
| Dimension of faceplate | 86 x 86 mm |
| Mortise dimension | Ø25 x 23 mm |
| Environmental temperature | -20°C - +60°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
|---|---|
| Mounting | flush mounted |
| Installation area | indoor |
| Housing material | metal |
| Material | Plastic and metal |
| Dimensions | 86 x 86 x 32,5 mm |
| Gross weight | 137 gr |
| Package contents | screw set, push button |
| Compatible devices | MBB-800B-P, MBB-800B-PM, MBB-B-SS-H, EBOX-3, M86-42-1 |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
