0036 1 406 98 08
SKU
PBK-A-16-NO(LED)-bl
High surface finish Ø16 mm push button with 28 mm wide shield - NO - blue LED
Ajánlott bruttó ár
Regular Price
€9.00
Special Price
€8.75
Description
PBK-A-16-NO(LED)-bl - High surface finish Ø16 mm push button with 28 mm wide shield - NO - blue LED
The push buttons with their high surface finish are available in a variety of designs, shapes and sizes. They can be stand-alone or mounted on a shield, but one thing they all have in common is that they are very easy to install and use.
They can be used to control electric locks and magnetic locks at the push of a button. They are ideal when a door needs to restrict access in one direction only, but allows free passage in the other direction.

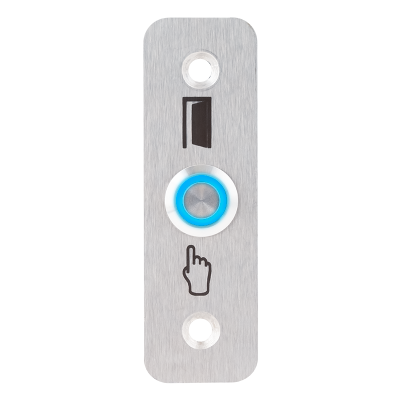

The PBK-A-16-NO(LED)-bl is a Ø16 mm push button with a high surface finish,with blue LED ring around the button and a 90 x 28 mm stainless steel shield. Thanks to its IP65 surface protection, it can even be mounted outdoors.
Downloads
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | DC |
| Stand-by current consumption (A) | 5 mA |
| Maximum current consumtion (A) | 5 mA |
| Operating mode/Type of device | Push button |
| Switch type | Press release |
| Type of switching | NO |
| Number of switches | 1 |
| Controlled output current rating | 2A @ 36V DC |
| LED type | Single colour |
| LED colour | Blue |
| Controlled output timable | No |
| Tamper protection | none |
| Dimension of faceplate | 90 x 28 mm |
| Mortise dimension | Ø16 x 22 mm |
|---|---|
| Environmental temperature | -30°C - +55°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | IP65 on the switch surface |
| IK rating | None |
| Mounting | flush mounted |
| Installation area | indoor, outdoor |
| Housing material | metal and plastic ABS |
| Material | Plastic and metal |
| Dimensions | 90 x 28 x 24 mm |
| Gross weight | 49 gr |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
